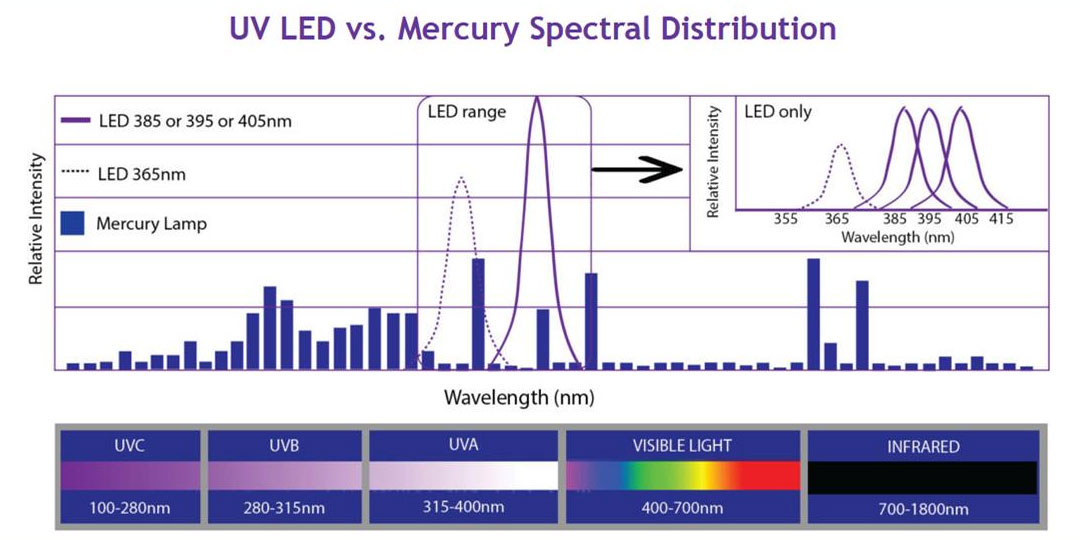

在UV固化應用設備方面，依照光源特性分類成兩大系統：UV汞燈/金鹵燈及UV LED。
UV汞燈/金鹵燈：具有較為寬廣的波長帶，對於特殊的UV膠材或表乾特性不佳的膠材，會有較佳的改善效果。但由於這類燈源也包含可見光及紅外線波段，故相對發熱量也較高。
UV LED：具有單一的波長，可依照LED晶粒製作特定波長的UV光源。其優點是溫度較低， 燈源可即開即關無須閘門機構，且燈源壽命較長。但由於波長太單一，對於某些UV膠材固化效果較差，故如採用UV LED光源, 多數會以混和波段組合。

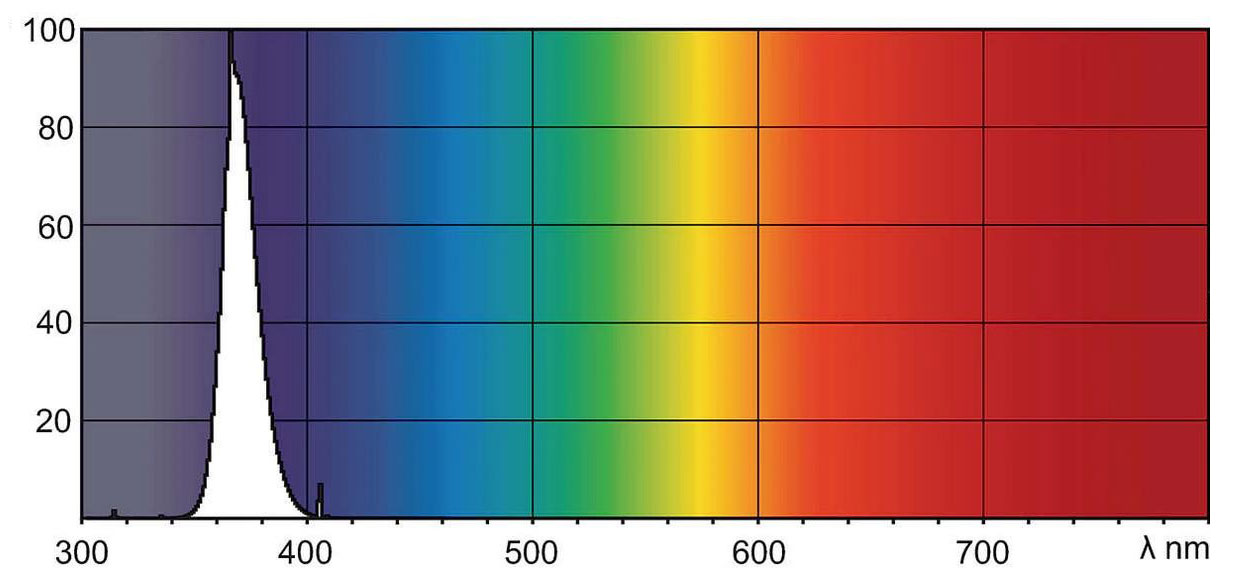

P牌低壓18W 365nm汞燈規格書內波長圖譜與能量對應圖
廠內標準光源(含可見光與紫外光)，具備例行性至工研院執行維護與對校

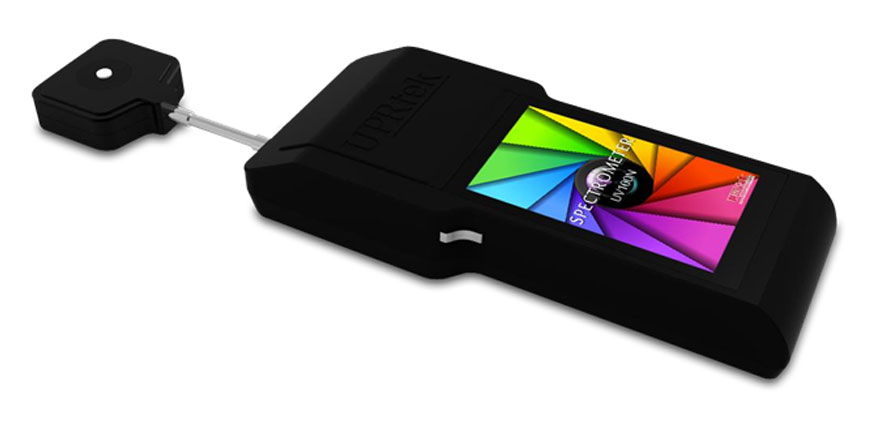

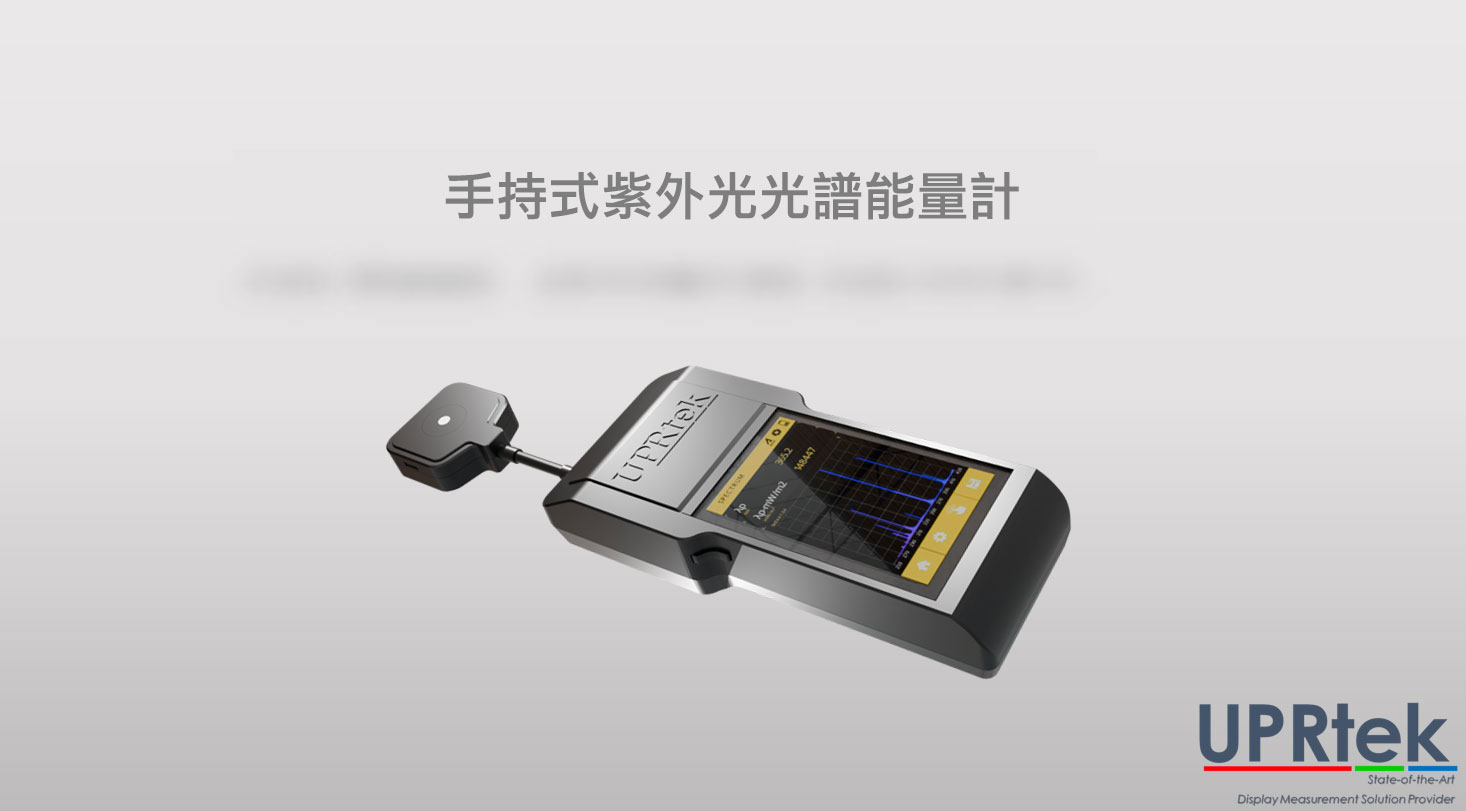

Handheld UV Spectrometer
| Sensor | CMOS Linear Image Sensor |
| Wavelength Range | 250 to 430 nm |
| Wavelength Data Increment | 1 nm |
| Spectral Bandwidth | Approximately 1nm (Half Bandwidth) |
| Wavelength Reproducibility | ± 0.5 nm |
| Measurement Range |
UVA*1,4: 315 to 430nm / 0.25 to 500 mW/cm2 UVB*2,4: 280 to 315nm / 0.3 to 200 mW/cm2 UVC*3,4: 250 to 280nm / 0.2 to 300 mW/cm2 |
| Accuracy |
± 5% (10 to 500 mW/cm2) ± 19% (0.2 to 10 mW/cm2) |
| Stray Light | -25 dB max. *5 |
| Integration Time Range | 1 ms to 2,000 ms |
| Digital Resolution | 16 bits |
| Capture Function | One time / Continuous |
| Operation Mode | Standalone |
| Integration Mode | Auto / Manual |
| Dark Calibration | Auto |
| Measuring Modes |
|
| Measuring Capabilities |
|
| Display | 4.3" 800X480 Capacitive Touch LCD |
| Max. Files | ≒ 68,000 Files @ 8GB SD Card（Excel） |
| Battery Operation Time | ≦ 4 hours / Fully Charged |
| Power | Adapter; 3200 mAh（3.7V Rechargeable Li-ion Battery） |
| Data Output Interface | MicroSD Card（SD2.0,SDHC / up to 32G） |
| Data Format | Compatible Excel |
| Operating Temperature / Humidity | 0 to 35 ℃, relative humidity 70% or less without condensation |
| Storage Temperature / Humidity | -10 to 40 ℃, relative humidity 70% or less without condensation |
*1：Processing the test under the 365nm LED light source.
*2：Processing the test under the 310nm LED light source.
*3：Processing the test under the 255nm LED light source.
*4：Temperature 23±2℃ and relative humidity 50% or less.
*5：Input the monochromatic light and measure the stray light ratio at ± 40nm.
The company reserves the right to change product specifications at any time without prior notice.
