科研等級光譜儀

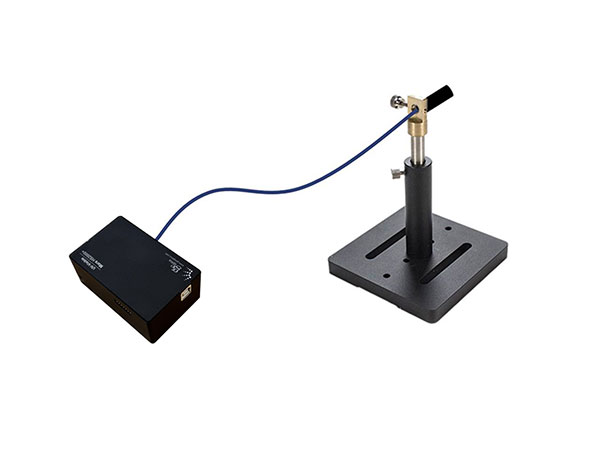

SCM6500高性能光譜儀

SCM6500 series high performance spectrometer with 1024 pixels and 2048 pixels version, which is most used in scientific research. Adopts Hamamatsu's 1024*58 or 2048*122 pixel area array back-illuminated CCD with TE cooler, which has very good scientific-grade sensitivity.

Its extremely optimized low-noise circuit system uses an 18-bit A/D converter, coupled with an excellent CT optical and opto-mechanical structure, which greatly improves the signal-to-noise ratio, sensitivity and thermal stability of the spectrometer, and is very suitable for Raman, fluorescence and other applications of weak spectral signals.

Adopts a replaceable slit design, and a spectrometer can be configured with various slits to meet the different requirements of resolutions and sensitivity.

規格表

Model SCM6500 (Scientific-Class Spectrometer)
Detector Hamamatsu Company, back-illuminated thin-film
refrigerated area CCD
2048×122 pixels
Pixel size 12µm×12µm
Wavelength response range 200nm-1100nm
Size 190mm×120mm×66mm
Wavelength Range 200nm-950nm (Pre-configured)
Optical Resolution ~1nm (Pre-configured 25µm slit)
A/D 18bit
Integration Time 8ms-3600s
Dynamic Range 100000:1
Trigger Mode Software Trigger, Hardware Trigger, Synchronous Trigger
Fiber connector SMA905
Operating Temperature 5℃-35℃(Recommended temperature 25℃)
Communication Interface USB2.0, RS232
Operating System Win XP, Win 7, Win 8, Win10
Power Supply 5V DC,2A
