Explorer NIR 近紅外光譜儀

128 pixels of InGaAs detector

規格 Specification

  • Range:900-1700nm
  • Resolution:~10nm
  • Integration:0.1ms- 65s
  • CCD:128×1 pixel,25×250 um
  • Power supply:DC 5V
  • ADC:16 bits
  • Interface:SM905
  • USB:Type-B or UART

產品說明:

Explorer NIR近紅外光譜儀,採用了緊湊型的光路與結構設計以及可更換的狹縫,讓體積上表現更為小巧,且可以依照客戶的選擇搭不同的狹縫,來決定合適的光學解析度,適合客戶不同的運用。光譜儀內部採用濱松Hamamatsu 高性能近紅外感測器,具備較高的信噪比以及較低的能耗。Explorer NIR 近紅外光譜儀,其光譜範圍為950nm-1700nm,非常適合於食品檢測、生物製藥和生命科學等領域,也非常合適於系統整合做二次開發。

應用領域:

食品和農業:水果和蔬菜的新鮮度和糖分檢測;肉類的脂肪和蛋白質含量檢測;穀物和種子的品質分析等
油料的成分分析,生命科學和製藥,製藥成分分析和過程監控塑膠產品生產過程的成分分析,材料篩選和品質控制等等

Due to the compact optical path and structure design, Hamamatsu uncooled InGaAs detector, Explorer NIR spectrometers have extremely low power consumption, small size and low price, and 950nm-1700nm spectral detection, the scope is very suitable for food sorting, biopharmaceuticals and life sciences, as well as system integration.
Explorer NIR adopts a replaceable slit design, a spectrometer can be configured with a variety of slits of different widths to meet the spectrum measurement needs of different resolutions and sensitivities, expanding the application requirements.
Explorer NIR requires only a 5V DC power supply and can be powered directly from the USB, making it easy to integrate.

產品特點:

可選擇的波長範圍及光學解析度,根據客戶實際應用需求,配置合適的光柵,配置合適的測量波長範圍和光學解析度;提供專業直覺的操作軟體,提供穿透率、吸收度,和反射率及時間監控等功能。

The use of uncooled InGaAs detector and compact optical path and structure design make Explorer NIR have extremely low power consumption and small size, which is convenient for system integration and outdoor measurement.
The interchangeable slit design makes Explorer NIR can be configured with a variety of slits with different widths, and can flexibly switch between different resolutions and sensitivities.
Selectable wavelength range and resolution, according to customer's actual application needs, configure professional grating, configure reasonable measurement wavelength range and resolution.

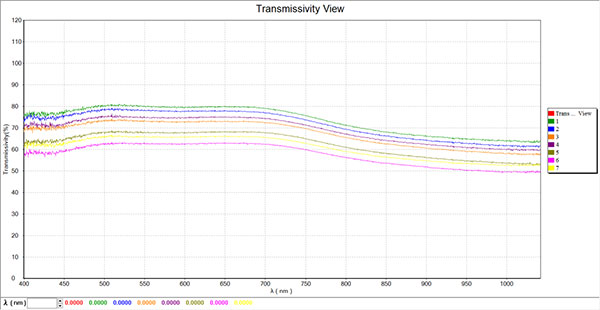

Professional test software, providing a variety of professional measurement modules such as absorbance, transmittance, concentration and reflectance.

規格表

Model Explorer NIR
Detector InGaAs
128 pixels
Pixel size : 50µm×250µm
Wavelength response range : 950nm-1700nm
Dimension 165mm×110mm×38mm
Wavelength range 950nm-1700nm (pre-configured)
Optical resolution ~10nm (pre-configured 25µm slit)
A/D 16bit
Integration time 0.1ms-65s
Dynamic Range 14000:1
Trigger modes 4 types (normal, software trigger, hardware trigger, synchronous trigger)
Power consumption 5VDC,300mA
Fiber connector SMA905
Operating temperature 5℃-35℃ (recommended temperature 25℃)
Communication Interface USB2.0, RS232/RS422
Operating system Win XP, Win 7, Win 8, Win10
Power supply USB
