Beam Analyzers

BP350 Beam Analyzers

A beam analyzer, also called a beam profiler, is used to measure the light intensity distribution of a laser beam on a cross-section. It can not only measure the shape of the beam, but also measure the detailed distribution of light intensity.

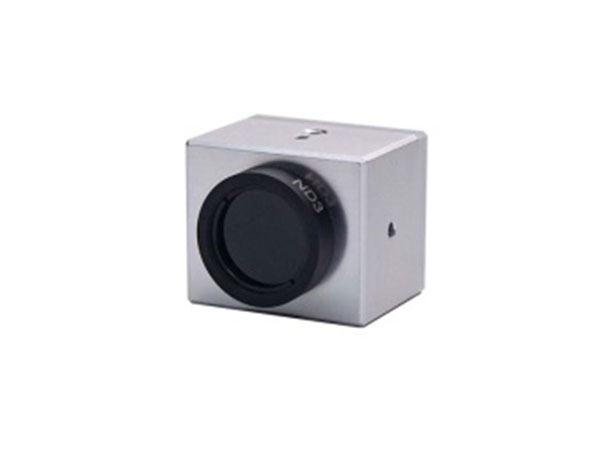

BP350 is a series of beam analyzers based on CMOS cameras. The measurable wavelength range is 350-1200nm. Three different photosensitive element sizes are provided, namely 1/1.2", 1", and 1/2.5", with a maximum power of 1W (when equipped with a 0.1% attenuator). The size, roundness, and energy distribution of the laser beam can be measured , center of mass, and pointing stability for accurate measurement.

  • Various photosensitive element sizes available
  • Flexible matching of various attenuators
  • Small size and easy to carry
  • Professional software, easy to operate
  • Measure the shape, roundness, center of mass, energy distribution and pointing stability of the laser beam


Model BP350-01 BP350-02 BP350-03 BP350-04 BP350-05 BP350-06 BP350-07
Light-sensitive size 1″ 1/1.2″ 1/2.5″ 1/2.7″ 1/1.7″ 1/2″ 1/2″
Pixels 2048×2048 1920×1200 2592×1940 1280×1024 4000×3000 1280×1024 400×300
Wavelength range 266-1200nm 266-1200nm 266-1200nm 266-1200 nm 390-1050 nm 0.4-1.7μm 8-14 μm
Minimum measurable beam 55μm 55μm 20μm 40μm 20μm 50μm 170μm
Damage Threshold 10W/cm²(ND4) 10W/cm²(ND4) 10W/cm²(ND4) 1W/cm² 10W/cm²(ND4) 10W/cm²(ND4) 10W/cm²(ND4)
Shutter type Global shutter Global shutter Rolling shutter Global shutter Rolling shutter Global shutter Rolling shutter
Communication interfaces USB 3.0 USB 3.0 USB 3.0 Micro B USB 3.0 GigE GigE

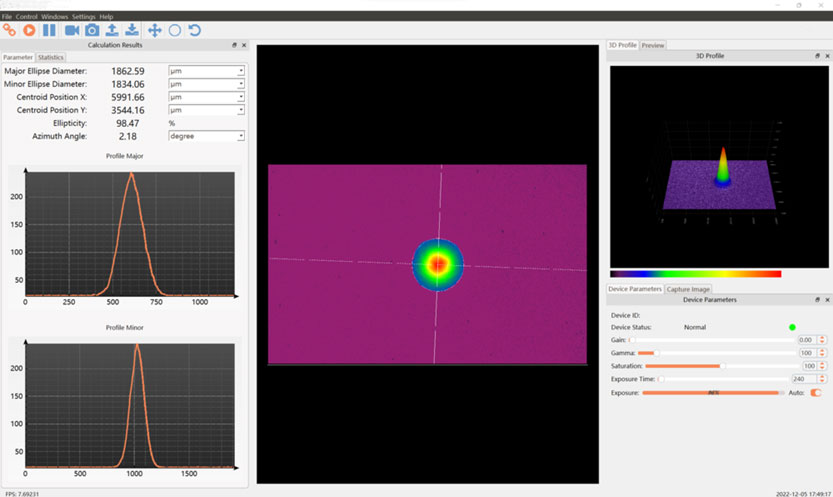

Software interface
