Integrating Sphere

Integrating Sphere For Reflection

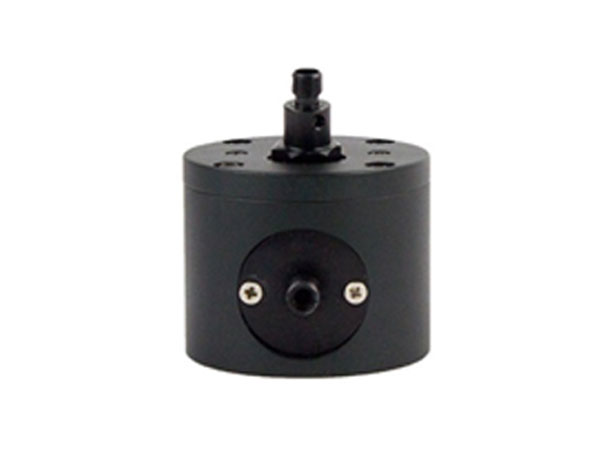

The integrating sphere is one of the most versatile lighting accessories in optics. Due to the high reflection and scattering characteristics of its inner surface, the light is evenly distributed on the sphere wall and reflects irregularly, fully integrating, so that the energy can be accurately measured. One or several perforations are opened on the ball wall, which are used as the light inlet, light outlet and sample hole. Some are also equipped with accessories such as sample holders, lens holders, hole plugs, apertures and standard white boards. The reflection integrating sphere can be combined with a spectrometer, light source, optical fiber and various optical measurement equipment to form a system for various sample measurements, such as sample surface reflectance, etc.

Features：

• is a 90° vertical integrating sphere output.
• It has a compact design, two or three SMA905 optical fiber interfaces, and an 8° vertical optical path design.

Applications：

• Photographic chemistry, lighting optics, fiber optics, laser technology, material analysis and medical technology. Measure the reflection characteristics of opaque materials: diffuse reflectance, reflectance, and spectral distribution characteristics.

Specification

Model	GIE-RFIS-30	GIE-RFIS-100	GIE-RFIS-150	GIE-RFIS-250
Ball diameter	30mm	1inch	1.5inch	2.5inch
Dimensions	Φ49 ×42mm	Φ44×37.5mm	Φ50×50.5mm	Φ70×63mm
Built-in light barrier	No
Light entrance	At the Bottom with a fiber connector
Sample port	At the Top; Customizable
Detection port	At the Side with a fiber connector
Coating material	PTFE, BaSO4, MgO optional
Spectral range	250~2500nm

Integrating Sphere Coating Reflectance

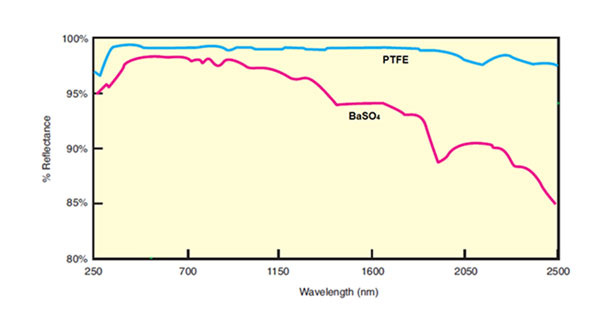

Reflectivity of PTFE and BaSO4 coatings
