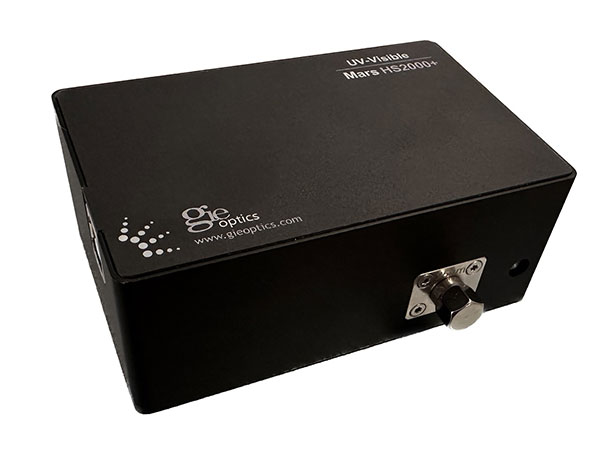

UV-Visible Spectrometer

Mars HS2000/HS3000/HS6000 series

Product Advantages：

• Full Spectrum Range: 180-1100nm, customizable.
• Using Hamamatsu S11639 sensor and excellent optical path design, the highest optical resolution can be achieved at 0.35nm, and the shortest integration time can reach 0.5ms. The outer shell is made of imported aviation aluminum material, which has excellent stability.
• The optical machine itself offers a dynamic range of up to 10,000:1 and an excellent signal-to-noise ratio of 600:1.
• Employs imported optical filters to eliminate second-order diffraction.
• Provides RS232/RS485 communication interfaces with built-in electronic design for interference resistance.
• Offers an SDK development kit, making it easy for users to develop applications.
• Features a replaceable slit function, allowing users to change the slit themselves to meet various experimental requirements.

Specification

Model	Mars HS series
Dimension	94 mm × 60 mm × 36.5 mm
Weight	0.3Kg
Wavelength range	180-1100nm
Optical resolution	0.35 nm~ Best (Determined by both grating and slit)
Fiber connector	SMA905
Slit	10um/25um/50um/100um/200um
Detector	Hamamatsu 11639 CMOS Sensor
Pixel	2048 pixels, size 14μm×200 μm
Signal to noise ratio	600:1 at full signal
A/D resolution	16bit
Integration time	0.5ms-65s
Dynamic range (Single)	10000:1
Power consumption	250 mA, 5 VDC
Operating temperature	5℃ -35℃（25℃）
Computer interface	USB2.0（12Mbps）,RS232（115200bps）
Operating system	Win10,Win8, Win7, Win XP
Fixing hole	4 of M3 fixing hole in the bottom, 2 of M3 fixing hole on side
Power supply	USB
Application	Film thickness measurement, solar panels, fluorescence detection, biochemical detection, LED photometric measurement, air detection, water quality analysis, plasma analysis, blood testing, jewelry testing

Band selection

According to the user's application needs, we can provide different grating specifications and different sensors to meet your application requirements.

Model	Wavelength Range	Resolution	Slit	Grating	Filter	Lens
Mars HS2000+	200-900nm	~1	25um	600g/mm,400nm	F06	---
		~1	25um	600g/mm,400nm	F06	L02
		~2	50um	600g/mm,400nm	F06	---
		~2	50um	600g/mm,400nm	F06	L02
		~2	50um	600g/mm,250nm	F06	L02
		~2	50um	600g/mm,650nm	F06	L02
		~5	100um	600g/mm,400nm	F06	L02
	200-550nm	~0.5nm	25um	1200g/mm,400nm	---	---
	200-433nm	~0.35nm	25um	1800g/mm,250nm	---	---
Mars HS6000+	750-1100nm	~0.35nm	10um	1200g/mm,850nm	F08	---
		~0.5nm	25um	1200g/mm,850nm	F08	L01
		~1	50um	1200g/mm,850nm	F08	L01
Mars HS3000+	350-1050nm	~1	25um	600g/mm,650nm	F05	---
		~1	25um	600g/mm,650nm	F05	L01
		~2	50um	600g/mm,650nm	F05	L01
		~2	50um	600g/mm,650nm	F05	L01
		~2	50um	600g/mm,500nm	F05	L01
		~4	100um	600g/mm,650nm	F05	L01
		~4	100um	600g/mm,500nm	F05	L01
Mars HS2000+	260-493nm	~0.35nm	25um	1800g/mm,400nm	---	---
Mars HS3000+	500-850nm	~0.5nm	25um	1200g/mm,400nm	---	---
Mars HS2000+	180-413nm	~0.35nm	25um	1800g/mm,250nm	---	---
		~0.7nm	50um	1800g/mm,250nm	---	---
Mars HS2000+	180-530nm	~0.5nm	25nm	1200g/mm,250nm	---	L02
		~0.4nm	5nm	1200g/mm,250nm	---	L02
Mars HS3000+	300-1000nm	~1nm	25nm	600g/mm,650nm	F06	---
		~1nm	25nm	600g/mm,650nm	F06	L02
		~2nm	50um	600g/mm,400nm	F06	L02
Mars HS2000+	200-1000nm	~1.5nm	25nm	500g/mm,330nm	F06	---
		~1.5nm	25nm	500g/mm,330nm	F06	L02
		~3nm	50um	500g/mm,560nm	F06	L02
Mars HS3000+	350-700nm	~0.5nm	25nm	1200g/mm,400nm	---	---
		~1nm	50um	1200g/mm,400nm	---	---
Mars HS6000+	400-1100nm	~1nm	25nm	600g/mm,650nm	F05	---
		~1nm	25nm	600g/mm,650nm	F05	L01
		~2nm	50um	600g/mm,650nm	F05	L01
Mars HS6000+	650-1100nm	~0.5nm	25nm	1200g/mm,750nm	F08	L01
Mars HS3000+	300-650nm	~0.5nm	25nm	1200g/mm,400nm	---	---
Mars HS6000+	700-1050nm	~0.5nm	25nm	1200g/mm,850nm	F08	---
Mars HS2000+	260-960nm	~2nm	50um	600g/mm,400nm	F06	L02
Mars HS3000+	300-1100nm	~1.5nm	25nm	500g/mm,560nm	F06	L02
Mars HS3000+	450-800nm	~4nm	200nm	1200g/mm,600nm	---	L01
Mars HS3000+	535-760nm	~0.3nm	25nm	1800g/mm,500nm	F05	L01
		~0.6nm	50um	1800g/mm,500nm	F05	L01
Mars HS3000+	400-850nm	~0.8nm	25nm	964g/mm,520nm	F05	---
Mars HS3000+	430-780nm	~0.5nm	25nm	1200g/mm,600nm	---	---
Mars HS2000+	180-880nm	~1.0nm	25nm	600g/mm,250nm	F06	L02

Applications

Film thickness measurement, solar panels, fluorescence detection, biochemical detection, LED photometric measurement, air detection, water quality analysis, plasma analysis, blood testing, jewelry testing.

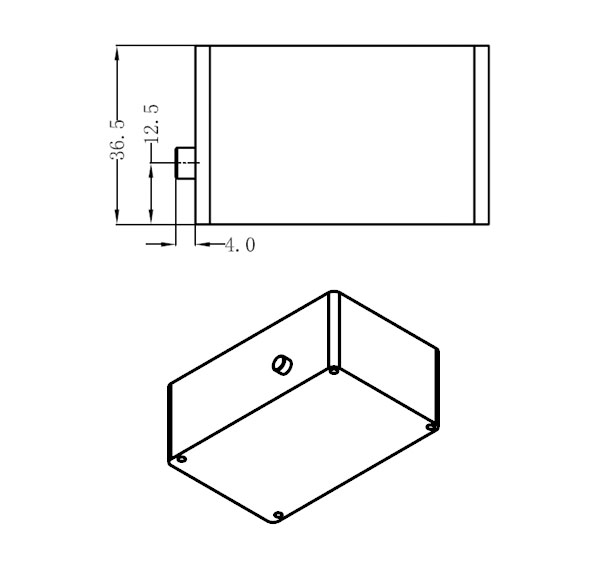

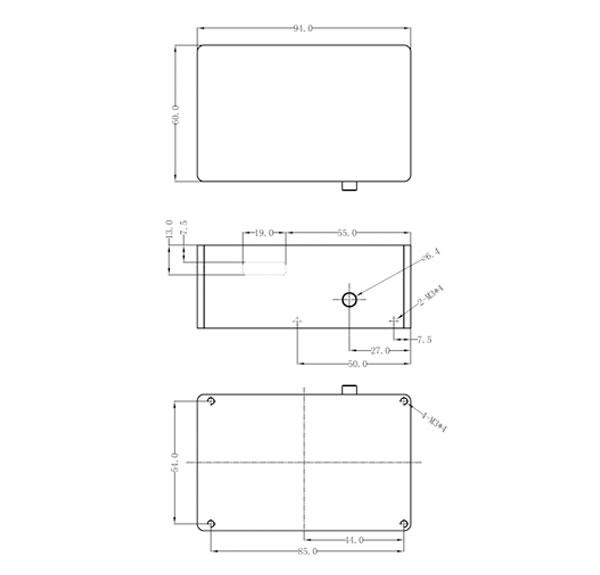

Spectrometer Dimensional Drawing
