High Resolution Spectrometer

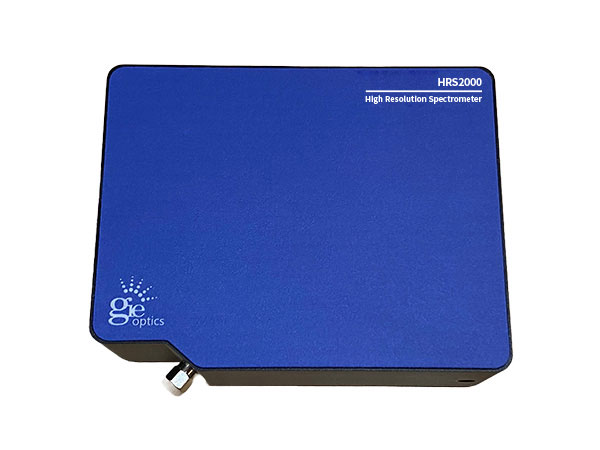

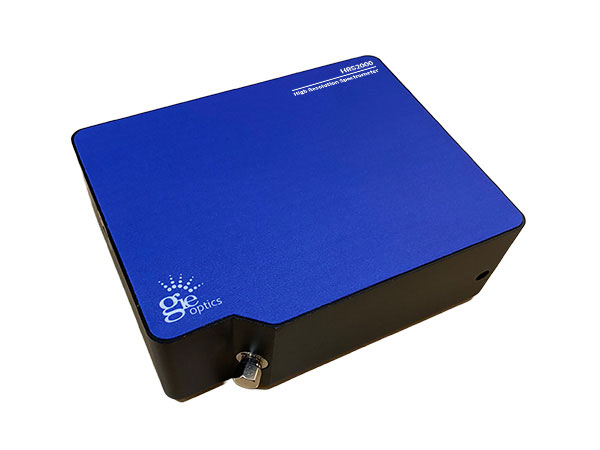

HRS2000 High Resolution Spectrometer

The HRS2000 series is a cost-effective spectrometer with excellent optical path design. It uses Hamamatsu S11639 2048 pixels sensor to achieve the best optical resolution of 0.1nm. The internal circuit of the spectrometer has been completely upgraded, and the signal-to-noise ratio reaches 600:1. , making this spectrometer of great use value in general spectrum detection.

With its lightweight size, the spectrometer is ideal for system integration. With its lightweight size, the spectrometer is ideal for system integration.

Product advantages：

• Crossed asymmetric C-T optical path structure.
• Linear gradient filters or long-pass filters eliminate secondary and higher-order diffraction.
• SMA905 fiber optic connector has strong versatility.
• A wide range of spectral ranges and resolutions are available for users to choose from.
• Directly senses the UV spectrum.
• USB 2.0 data transfer and power delivery.
• Supports USB2.0, RS232/485 multiple communication methods.
• Provide SDK development kit to assist customers in secondary development.
• Timing measurements, instant display of peak wavelength and full width at half maximum (FWHM).

Applications：

• LED Colorimetry Measurements
• Solar Spectrum Measurement
• 螢光光譜測量
• Laser Spectroscopy Measurement
• Plasma Spectroscopy Measurement

Specification

Model	HRS2000
Dimension	140mm x 110mm x 46mm
Weight	0.7 Kg
Wavelength range	180nm - 1100nm
Optical resolution	~0.06nm-0.6nm
Fiber connector	SMA905
Detector	Hamamatsu S11639 2048 Linear CCD
Pixel	2048 pixels, size 14μm×200 μm
Signal to noise ratio	600:1 at full signal
Linearity	>99%
Stray light	<0.1% (600nm,435nm)
A/D resolution	16 bit
Integration time	0.5ms - 10s
Dynamic range	300:01:00
Working mode	Software,hardware, synchronization
Power consumption	250 mA, 5 VDC
Operating temperature	5℃ -35℃（25℃）
Computer interface	USB2.0（12Mbps） RS232（115200bps）
Operating system	Win XP,Win7,Win8,Win10
Power supply mode	USB or 5VDC

Model	Wavelength Range	Resolution	Slit	Grating	Filter	Lens
HRS2000	200-420nm	~0.3nm	25um	1200g/mm, 250nm	---	---
	200-1000nm	~0.6nm	5um	330g/mm, 600nm	F06	---
	380-900nm	~0.4nm	10um	500g/mm, 560nm	F05	---
	305-595nm	~0.3nm	10um	900g/mm, 550nm	---	---
	900-1000nm	~0.1nm	10um	1760g/mm, 500nm	F08	---
		~0.1nm	10um	1760g/mm, 500nm	F08	L01
		~0.3nm	25um	1760g/mm, 500nm	F08	L01
	600-1100nm	~0.3nm	5um	500g/mm, 770nm	F08	---
	330-770nm	~0.3nm	10um	600g/mm, 500nm	F05	---
	500-720nm	~0.2nm	10um	1200g/mm, 500nm	---	---
	800-1000nm	~0.2nm	5um	1200g/mm, 1000nm	F08	L01
	250-400nm	~0.1nm	10um	1760g/mm, 500nm	---	---
	390-610nm	~0.2nm	10um	1200g/mm, 500nm	---	---
	300-1100nm	~0.6nm	5um	333g/mm, 600nm	F06	---
	340-850nm	~0.5nm	10um	500g/mm, 560nm	F05	---
	795-905nm	~0.1nm	5um	1760g/mm, 500nm	F08	L01
	1005-1080nm	~0.1nm	10um	1760g/mm, 500nm	F08	L01
	750-870nm	~0.1nm	10um	1760g/mm, 500nm	F08	---
	250-350nm	~0.1nm	10um	2400g/mm, 300nm	---	---
	350-450nm	~0.1nm	10um	2400g/mm, 300nm	---	---
	660-734nm	~0.1nm	5um	2400g/mm, 300nm	F08	L01
	180-400nm	~0.3nm	25um	1200g/mm, 250nm	---	---

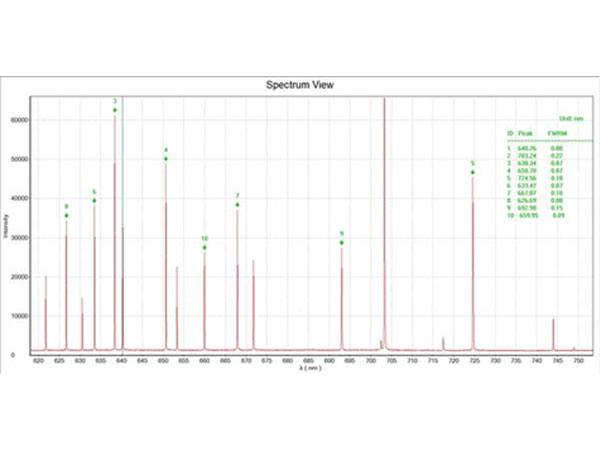

Test spectrum of Standard mercury argon lamp

Spectrometer Dimensional Drawing
