Raman holder

Raman holder

GIE-LAMAN-STAGE

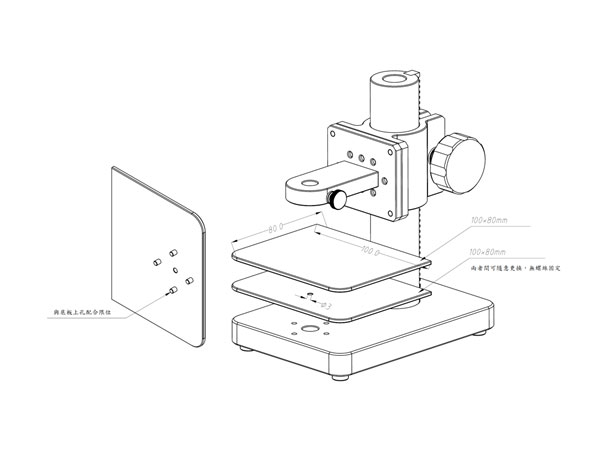

Raman Holder Engineering Drawing

Solid sample testing holder, adjustable range 0-130mm GIE-LAMAN-STAGE solid sample testing holder, adopts vertical design to ensure that the sample and the light source remain vertical; the sample table is equipped with extinction holes, which can effectively reduce stray light and is very It is convenient to pick and place samples, and the height of the light source is adjustable, with an adjustable range of 0-130mm, suitable for samples of different thicknesses.

Applications

• Measurement of transmittance or absorbance of flat solid samples

Features

• Vertical design ensures that the sample is perpendicular to the light source.
• The height is adjusted through the rack and gear, with a locking function for precise positioning.
• The height is adjustable, the adjustable range is 0-130mm, and it is suitable for flat solid samples of different thicknesses.
