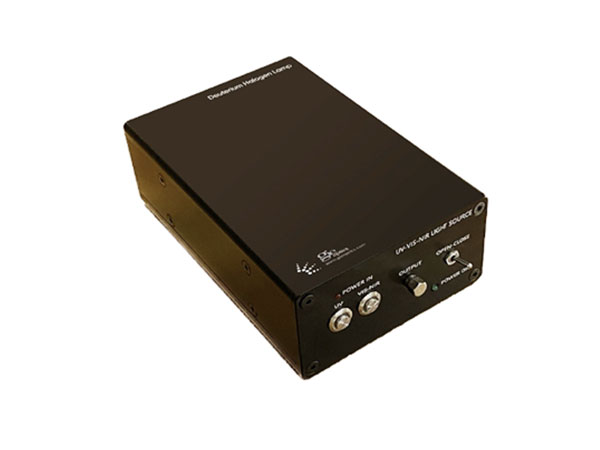

Mini-Deuterium Halogen Light source

GIE-LIGHT-DH-Mini

Small size deuterium-halogen light source, 180-2000nm, optimal spectral range 200-1100nm, deuterium lamp about 5W, halogen lamp about 0.2W, with shutter and fan cooling. It is a small UV-visible light source. Its small size is very suitable for portability and is suitable for customers who need mobile experiments.

Applications:
  • Penetration measurement
  • Absorbance measurement
  • Reflectance measurement

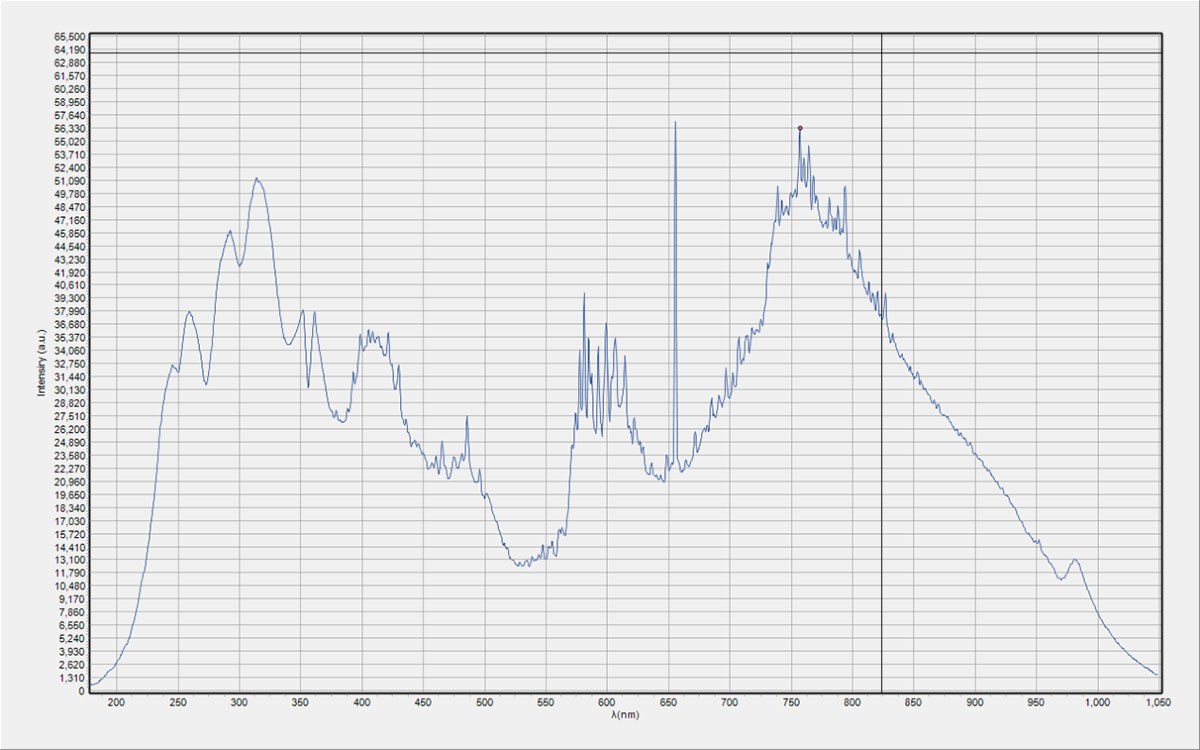

Output light source spectrum diagram

Specification

Model GIE-LIGHT-DH-Mini
Dimension(L*W*H) 180mm*120mm*60mm
Optimum working spectral range 200 nm-2500 nm
Power consumption 6W
Power supply adapter 12VDC, 0.6A
Shutter TTLTTL controlled electronic shutter
External control Lamp (D2, W-Lamp) ON/OFF independently Shutter open/close
Optical fiber connector SMA905
Deuterium Lamp Spectral distribution: 200nm-400nm
Lifetime: ≥1000h@ 240 nm (50 % intensity loss)
Tungsten lamp Spectral distribution: 400nm-1100nm
Lifetime: ≥2000h
