Explorer NIR, 256pixels InGaAs near-infrared spectrometer

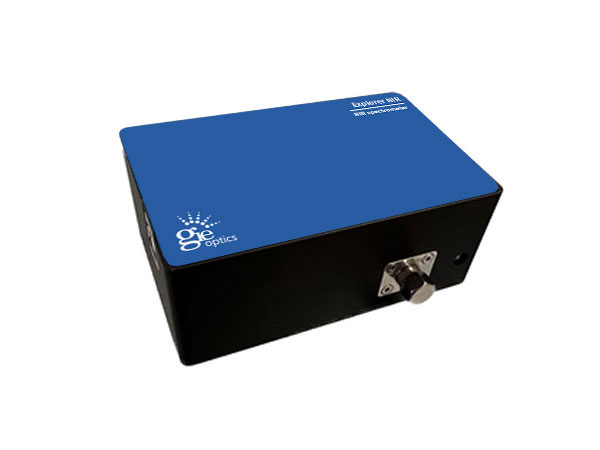

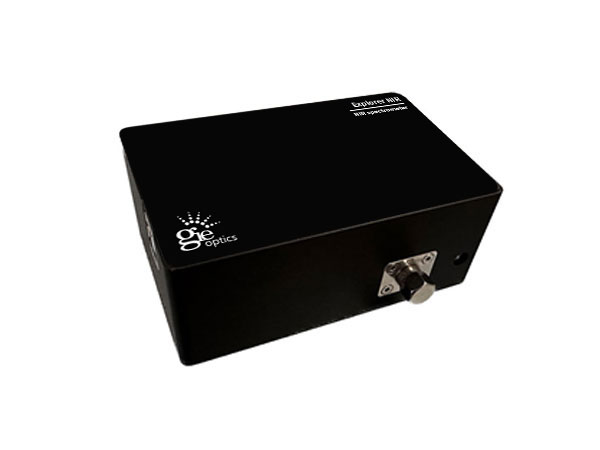

Explorer NIR-256 Explorer NIR-256

The Explorer NIR-256 near-infrared spectrometer is designed to use Hamamatsu's uncooled 256pixels InGaAs sensor. Compared with the 128 pixels sensor, the number and size of pixels are doubled, allowing the highest resolution to be 1.5nm. The optical platform of this series of spectrometers adopts a replaceable slit design. One spectrometer can be configured with a variety of slits of different widths to meet the spectrum measurement needs of different resolutions and sensitivities. The optical machine is small in size and flexible in configuration. It is very suitable for fields such as near-infrared LD detection, food testing, biopharmaceutical and scientific research, and industrial integration.

Product advantages：

Using Hamamatsu 256pixels uncooled InGaAs sensor, the highest resolution reaches ~1.5nm.
Compact optical path and structural design, suitable for system integration.
It has an interchangeable slit design that can be matched with slits of different specifications. Users can choose different resolutions and sensitivities to meet the needs of experiments.
The wavelength range and resolution can be customized to configure the appropriate spectral range and resolution.
Professional measurement software, providing measurement functions such as absorbance/transmittance/concentration/reflectivity/timing monitoring.

Applications：

Measurement of near-infrared LD light source spectrum
Food and agricultural testing, such as sweetness and freshness testing of vegetables and fruits; fat and protein testing of meat; moisture testing of grains and seeds, etc.
Oil composition analysis
Biopharmaceutical online monitoring and process analysis
Plastic sorting

Basic Default Specification

Model	Wavelength Range	Resolution	Slit	Grating
Explorer NIR-256pixels	920-1700nm	~5.0nm	25um	300g/mm, 1200nm

*Other wavelength ranges and resolutions can be customized.
*Some models can be equipped with cylindrical lenses to improve the sensitivity of the spectrometer.

Specification

Model	Explorer NIR-256
Detector	InGaAs 256 pixel uncooled detector Pixel size: 50µm×500µm

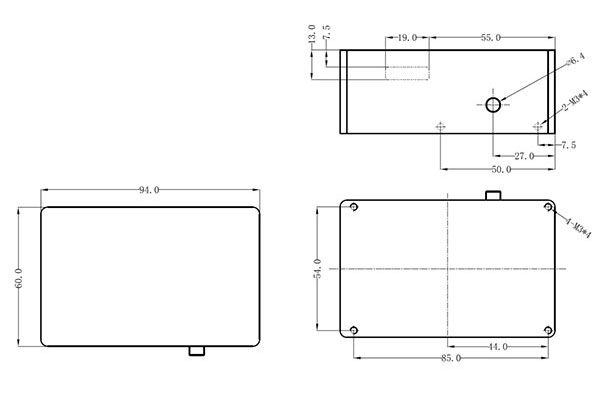

Dimension	94mm×60mm×36.5mm
Wavelength Range	920nm-1700nm (pre-configured)
Optical Resolution	~5nm(pre-configured 25µm slit)
A/D	16bit
Signal-to-Noise Ratio	10000:1
Integration Time	0.1ms-65s
Dynamic Range	14000:1
Trigger Mode	4 types (normal trigger, software trigger, hardware trigger, synchronous trigger)
Power Consumption	5VDC，300mA
Fiber Connector	SMA905, replaceable slit design
Operating Temperature	5℃-35℃ (recommended temperature 25℃)
Communication Interface	Mini USB2.0(12Mbps) RS232(115200bps)
Operating System	Win XP, Win 7, Win 8, Win10
Power Supply	USB

Test Data

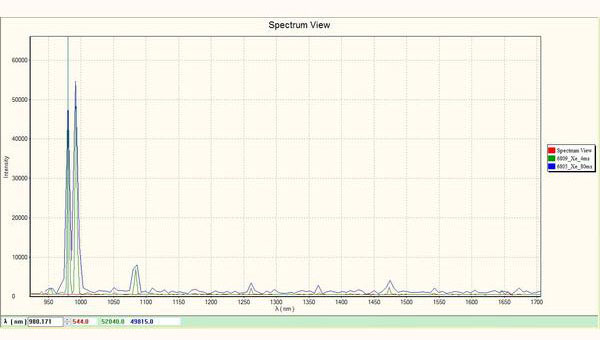

Standard xenon lamp spectrum test comparison（With the same slit and spectral range, the optical resolution of 256pixels is better than 128pixels）

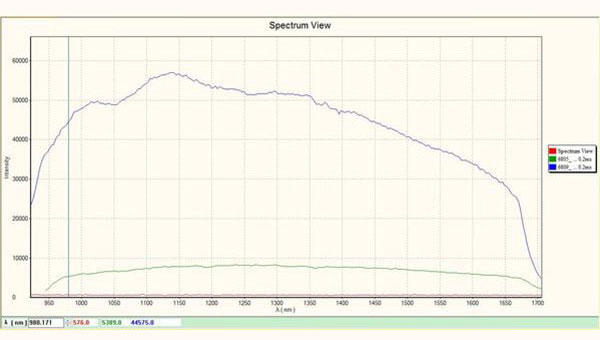

Halogen lamp spectrum test comparison（For the same slit and spectral range, the sensitivity of 256pixels is better than that of 128pixels）
