GIE-LIGHT-LASER series lasers are often used as excitation light sources for fluorescence measurement, Raman measurement, and LIBS measurement in photoelectric measurement applications. We provide two types of laser light sources suitable for photoelectric measurement: single-wavelength narrow-linewidth laser light source and dual-wavelength narrow-linewidth laser light source.

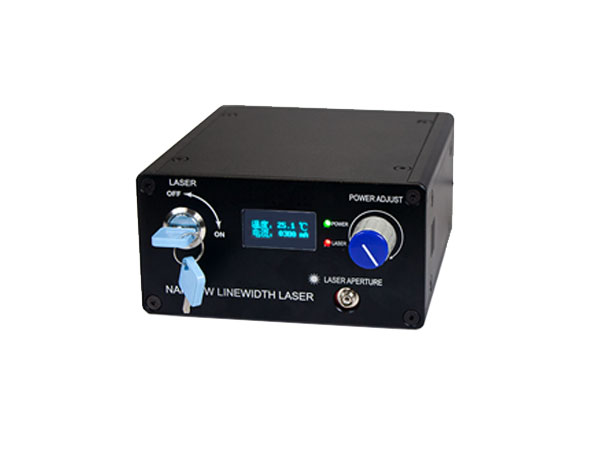

The GIE-LIGHT-LASER-01 series is a scientific research-grade single-wavelength, narrow-linewidth, multi-mode laser light source that provides a variety of center wavelengths to choose from. The minimum linewidth of this series of laser light sources can reach below 0.08nm. Its narrow linewidth, stable power, and stable wavelength output make it one of the ideal light sources for scientific research. The product has a compact structure and is easy to carry. It supports host computer control and real-time monitoring of the usage status of the laser light source.
| Model : GIE-LIGHT-LASER-01 | ||||||
|---|---|---|---|---|---|---|
| Optical parameters | ||||||
| Wavelength(nm) | 532 | 785 | 808 | 830 | 976 | 1064 |
| Output Power (mW) | 100 | 500 | 600 | 600 | 800 | 800 |
| Wavelength tolerance (nm) | ±0.5 | |||||

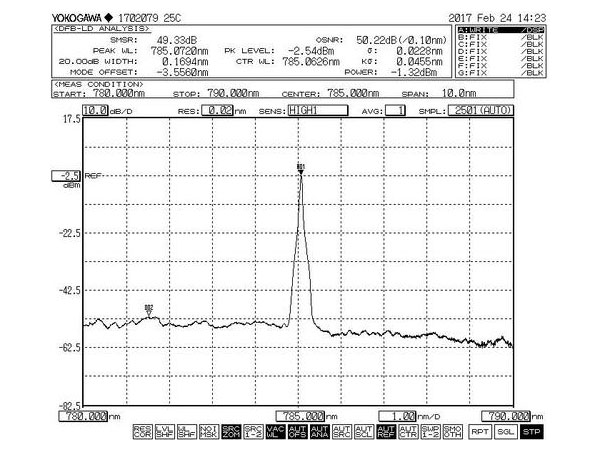

| Line width (nm) | <0.08 | <0.1 | <0.3 | <0.1 | <0.3 | <0.1 |
| Wavelengh stability | ±0.005nm@4H | |||||

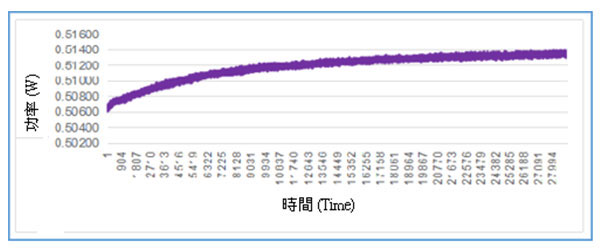

| Power stability | ±2.0%@4H | |||||
| Side mode suppressin ratio | 35-45dB | |||||
| System parameters for all models | ||||||
| Power adjustment range | 0~100% | |||||
| Preheat time | 15min | |||||
| Modulation input | 類比信號0~5V | |||||
| Control interface | USB，BNC | |||||
| Fiber optic interface | SMA905，FC/PC | |||||
| Adapter fiber | 105μm，0.22 NA | |||||
| Power input | 100-240VAC,50/60Hz | |||||
| System power consumption | <20W | |||||
| Operating temperature | 10~35 ℃ | |||||
| System weight | 1.2Kg | |||||
| System size | 150×102×200 mm | |||||
