High Speed Spectrometer

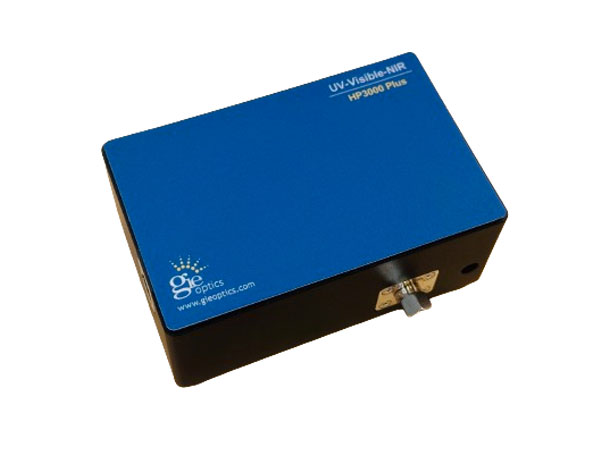

HP3000 Plus High Speed Spectrometer

The USB transmission speed of the HP3000 Plus spectrometer can reach 480Mbps, and it also adds internal storage function, which can store 5000 spectral data. It also supports RS485, RS422 and network port communication, which enhances the anti-interference performance and is very suitable for industrial customers who need fast measurements.

Product advantages：

• Cross C-T optical path design, small size and easy to carry.
• Linear Gradient Filter Eliminates Second and Higher Order Diffraction
• High-speed data transmission, 2ms/frame.
• It has 32M internal data storage space.
• Selectable wavelength ranges and resolutions.
• Supports multiple trigger modes, provides development kit SDK, and supports secondary development and system integration.
• The replaceable slit design supports the replacement of slits of different widths to obtain different sensitivity and resolution.

Applications：

• Environmental monitoring
• Raman measurement
• Transmittance and reflectance measurements of materials
• LED application
• Laser and plasma spectroscopy measurements

Product Specifications

Model	HP3000 Plus
Dimension	94 mm×60 mm×34.5 mm
Weight	0.3 Kg
Wavelength range	180nm-1100nm
Optical resolution	~0.35nm (pre-configured)
Fiber connector	SMA905
Detector	Hamamatsu S11639 2048 Linear CCD
Pixel	2048 pixels,size 14μm×200 μm
Signal to noise ratio	600:1 at full signal
A/D resolution	16 bit
Integration time	0.1ms-65s
Dynamic range(Single)	10000:1
Trigger mode	4 types (normal trigger, software trigger, hardware trigger, synchronous trigger)
Power consumption	5 VDC, 250 mA
Operating temperature	5℃-35℃ (recommended temperature 25℃)
Computer interface	USB2.0 （12Mbps） RS232（115200bps）
Operating system	Win XP, Win7,Win8, Win10, Win11
Fixing hole	4 M3 fixing holes in the bottom 2 M3 fixing holes on the sides
Power supply	USB

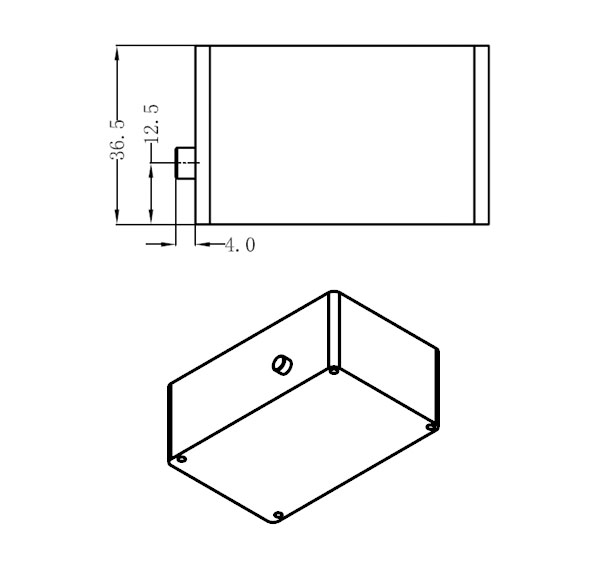

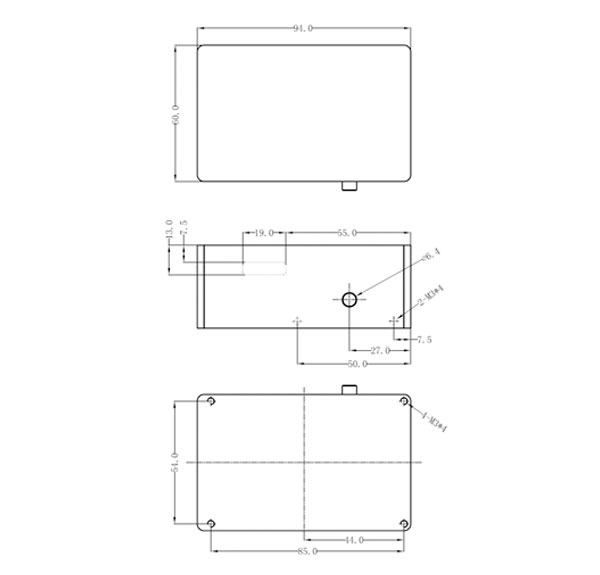

Spectrometer Dimensional Drawing
