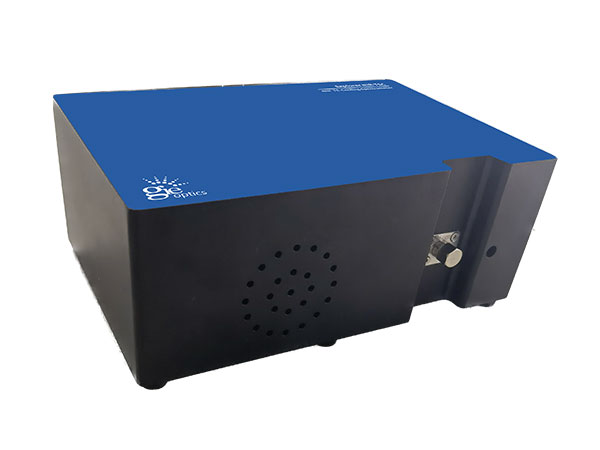

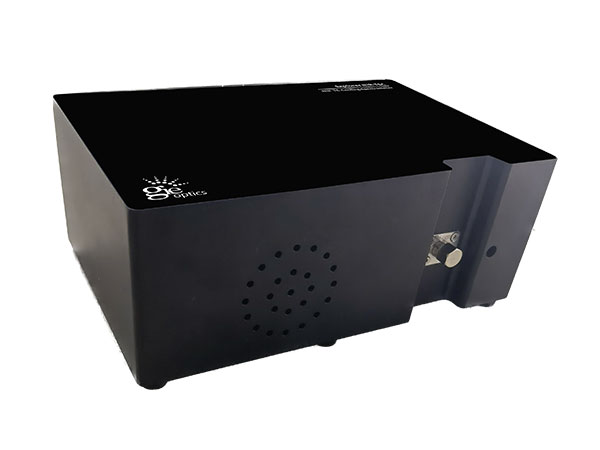

The Explorer NIR-TEC series of cooled near-infrared spectrometers adopts a compact optical path and structural design and has a replaceable slit function. It is small in size and can be configured with a variety of slits of different widths to achieve different resolutions and sensitivities.
Meets the measurement needs of different applications and can be flexibly used in different application fields. The spectrometer has a built-in Hamamatsu high-performance near-infrared sensor, which has a good signal-to-noise ratio and extremely low power consumption. The near-infrared spectrometer has a spectral sensing range of 900nm-2200nm, which is very suitable for food sorting, biopharmaceuticals, life sciences and other fields, and is also very suitable for system integration.
Model 1:
512 Pixels InGaAs TE-Cooling near-infrared full-wavelength spectrometer, band range: 900nm-1700nm
Model 2:
512 Pixels InGaAs TE-Cooling near-infrared full-wavelength spectrometer, wavelength range: 900nm-2500nm
| Model | Explorer NIR-TEC-01 | Explorer NIR-TEC-02 |
|---|---|---|
| Sensor | Hamamatsu 512 pixels detector with TE-cooling (Hamamatsu G11508-512SA) |
Hamamatsu 512 pixels detector with TE-cooling (Hamamatsu G11478-512WB) |
| Pixel size (μm)：25×250μm | Pixel size (μm)：25×250μm | |
| Wavelength range (nm)：900-1700nm | Wavelength range (nm)：900-2500nm | |
| Size | 190mm×120mm×66mm | 190mm×120mm×66mm |
| A/D | 16bit | 16bit |
| Signal to Noise Ratio | 13000:1 | 10000:1 |
| Dynamic Range | 15000:1 | 14000:1 |
| Integration Time | 1ms-65s | 0.1ms-65s |
| Pre-configuration | Wavelength range (nm): 900-1700 | Depending on the grating |
| Optical Resolution：~3.13 | ||
| Slit (μm)：25 (replaceable) | ||
| Filter included | ||
| Trigger Mode | Software, hardware, synchronization | Software, hardware, synchronization |
| Communication Interface | USB2.0(mini), RS232 | USB2.0（mini）,RS232 |
| Fiber Connector | SMA905（Other fiber optic adapters can be customized） | SMA905（Other fiber optic adapters can be customized） |
| Power Supply | 12VDC，4A | 12VDC, 4A |
| Operating Temperature | 5℃-35℃ (Recommended 25℃) | 5℃-35℃ (Recommended 25℃) |
| Operating System | Win XP, Win7, Win8, Win10, Win11 | Win XP, Win7, Win8, Win10, Win11 |
