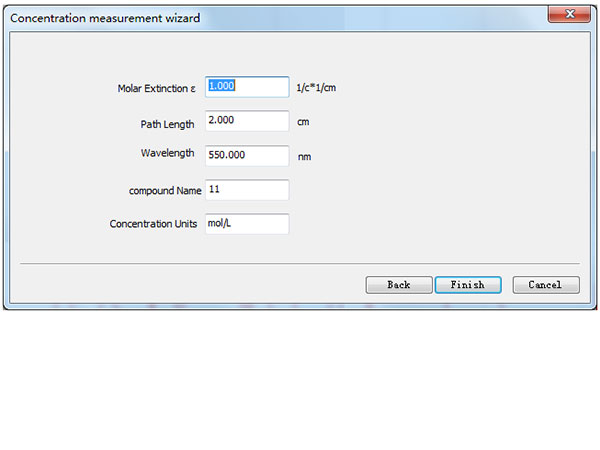

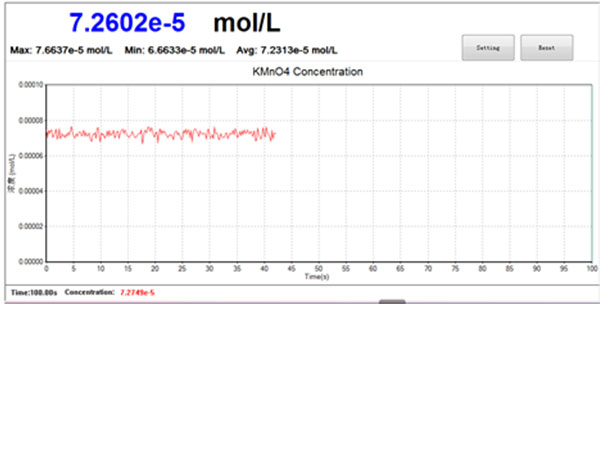

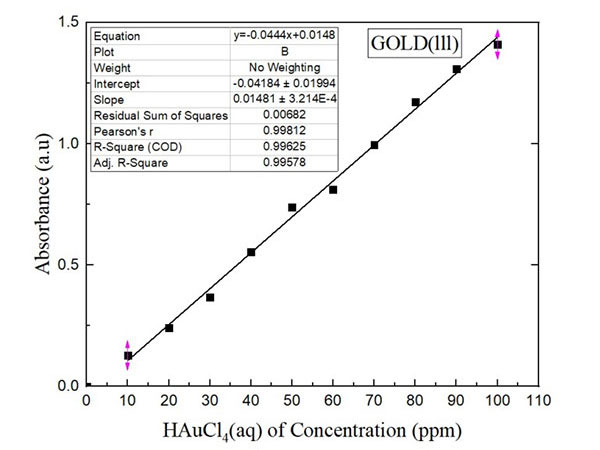

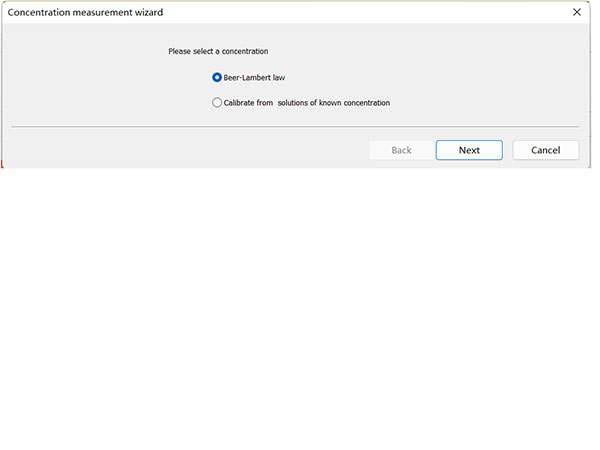

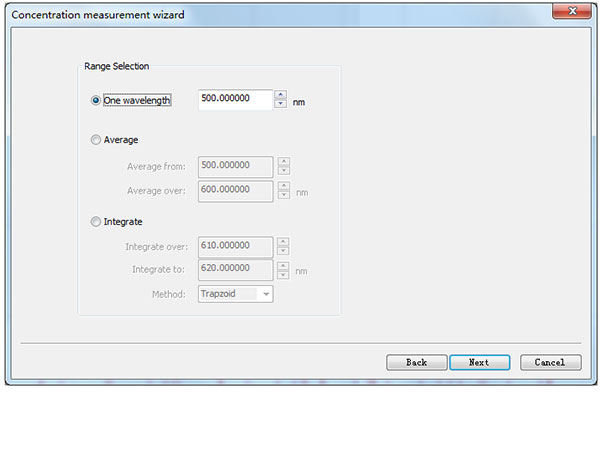

1.Beer's Law Calculate Concentration

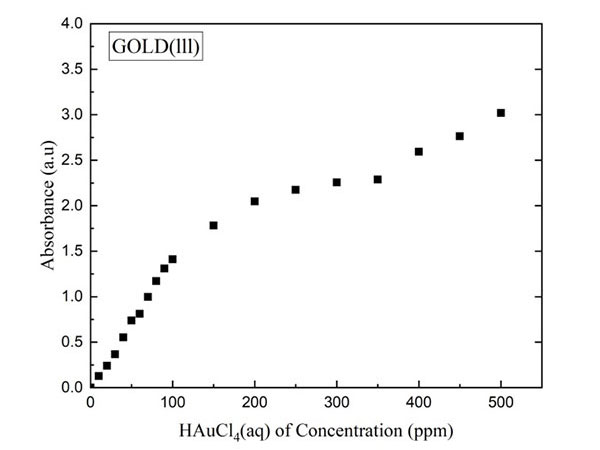

2.Calculate concentration based on measurement data of known

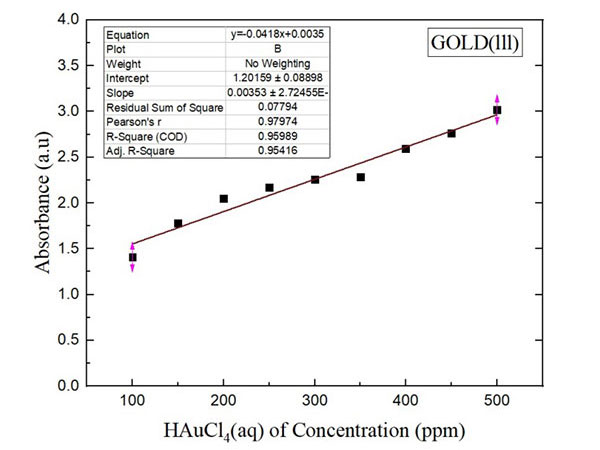

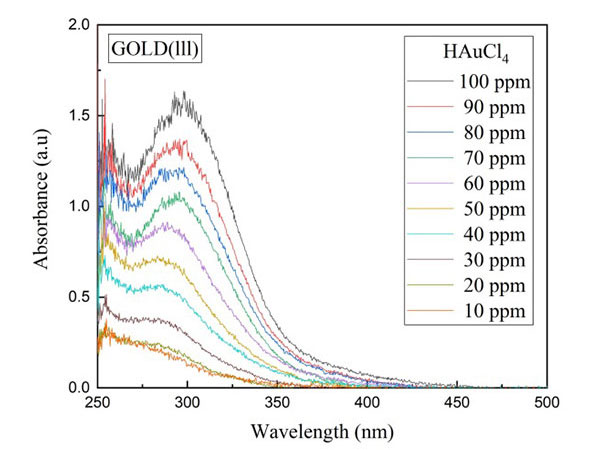

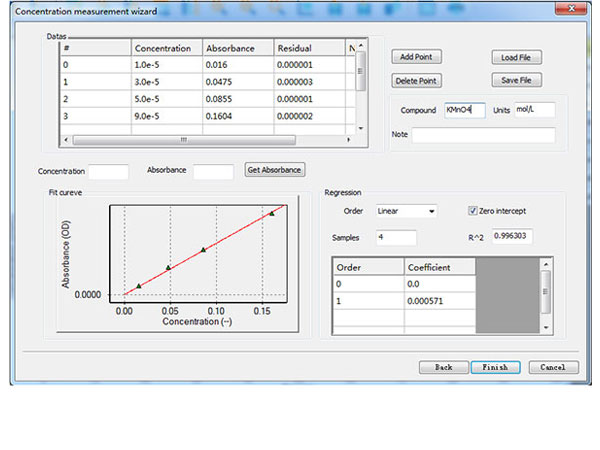

3.Calibration curve can be established
| Model | Standard Spectrometer UV-Visible Spectrometer Mars HS2000+/HS3000+/HS6000+ |

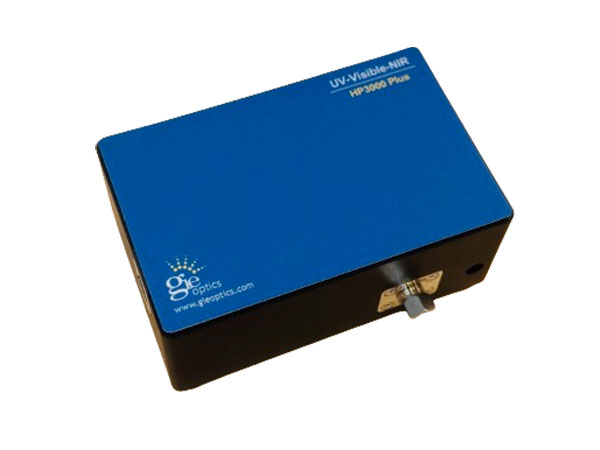

High-Speed Spectrometer UV-Visible Spectrometer HP3000 Plus |
High-Resolution Spectrometer (4096pixels/3648pixels/2048pixels) HRS4000/HRS3000/HRS2000 High Resolution and High Sensitivity Spectrometer HRS2000-BT(2048pixels) |

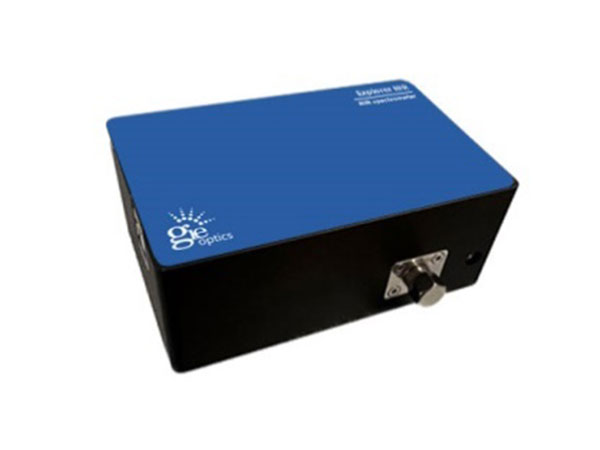

Near-Infrared Spectrometer (128pixels/256pixels/512pixels) Explorer NIR |
|---|---|---|---|---|
| Photo |  |
 |
 |
 |
| Specification | Wavelength Range:180-1100nm (customized)
Integration Time: 0.5ms-65sec Sensor: Hamamatsu S11639-1 Slit=25um (50um/100um/200um) Optical Resolution : 0.5-12nm |
Wavelength Range:180-1100nm(customized)
Integration Time:0.1ms-65sec Sensor: Hamamatsu S11639-1 Slit=25um (50um/100um/200um) Optical Resolution : 0.5-12nm Data Rate, 2ms/frame |
Wavelength Range:200-1100nm (customized)
Sensor: Toshiba 3648pixels Hamamatsu 4096pixels Integration Time: 0.5-65sec Slit=5um /10um Optical Resolution: 0.1-0.2nm |
Wavelength Range:950-1700nm/900-2500m
Sensor: Hamamatsu InGaAs 128 pixels Hamamatsu InGaAs 256 pixels Hamamatsu InGaAs 512 pixels Integration Time: 0.1-65sec Slit=25um /50um Optical Resolution: 4-6nm |

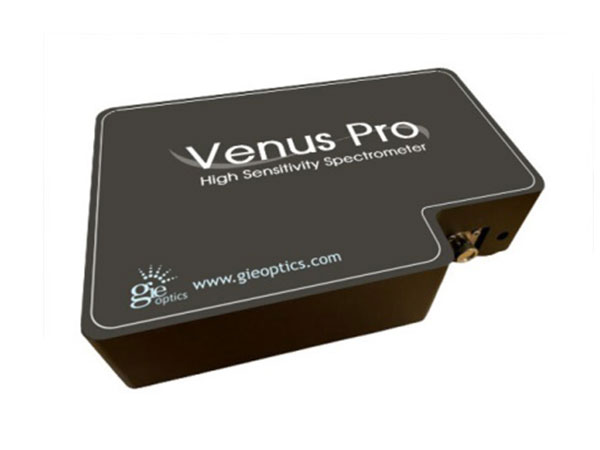

| Model | High Sensitivity Spectrometer Venus Pro-UV, Venus Pro-NIR |
NIR TE-Cooling Spectrometer(512pixels/256pixles) Explorer NIR-TEC |

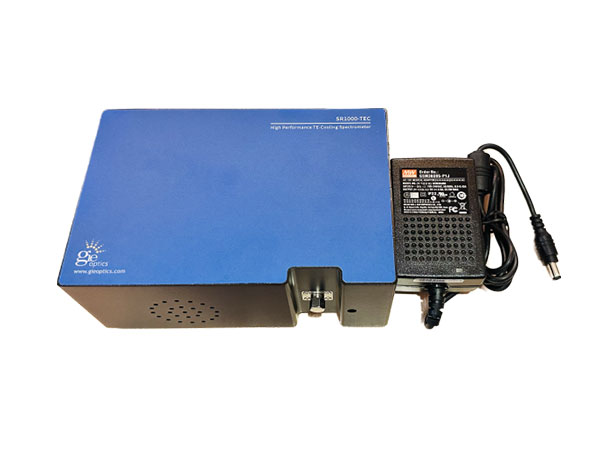

UV-VIS TE-Cooling Spectrometer(2048pixels/1024pixels) SR2000-TEC/SR1000-TEC |

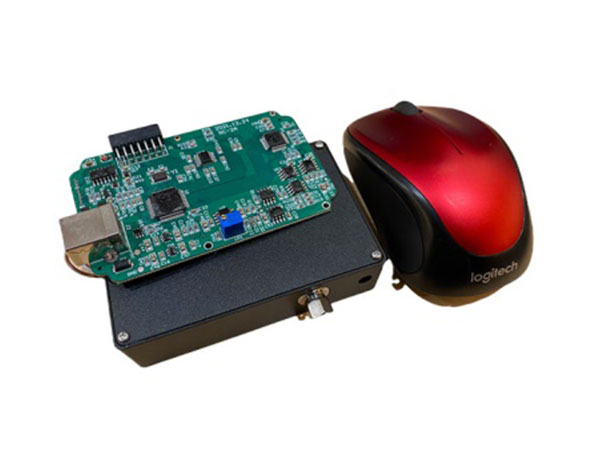

Spectra Module MS2000/MS3000 |
|---|---|---|---|---|
| Photo |  |
 |
 |
 |
| Specification | Wavelength Range:180-1100nm (customized)
Sensor: Hamamatsu S10420 Back thinned CCD Hamamatsu S16010（S11510） Back thinned CCD Slit=5μm/10μmm/25μm/50μm Optical Resolution:0.35nm - 1.5nm |
Wavelength rang: 900-2500nm
Sensor: Hamamatsu 512 pixels with TE-cooling Hamamatsu 256 pixels with TE-cooling Pixel Size : 25×250μm Optical Resolution : Depends on customer’s needs |
Wavelength range (nm)：180-1100nm
Sensor: Hamamatsu back-thinned CCD sensor Pixels: 1024×58 Pixels Pixel Size: 24µm×24µm Wavelength Range 200nm-950nm(Default specifications) Optical Resolution: ~1nm (Pre-configured 25µm slit) |
Wavelength range (nm)：950-1700nm
180-1100nm (customized) Sensor: Hamamatsu S11639-1 Slit=10um/25um (50um/100um/200um) Optical Resolution : 0.5-12nm |

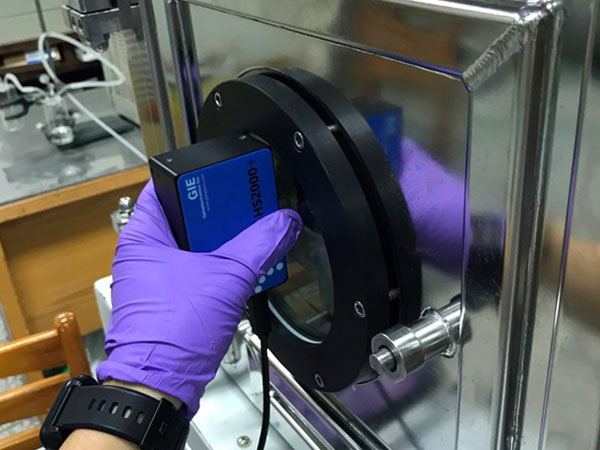

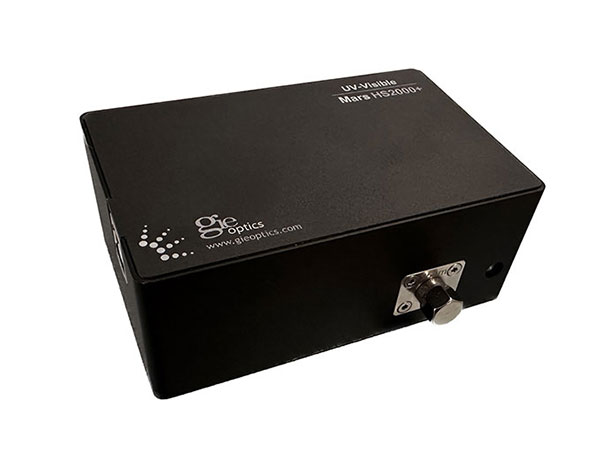

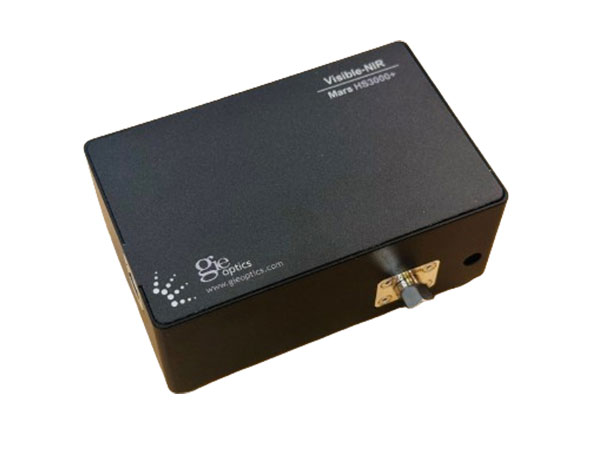

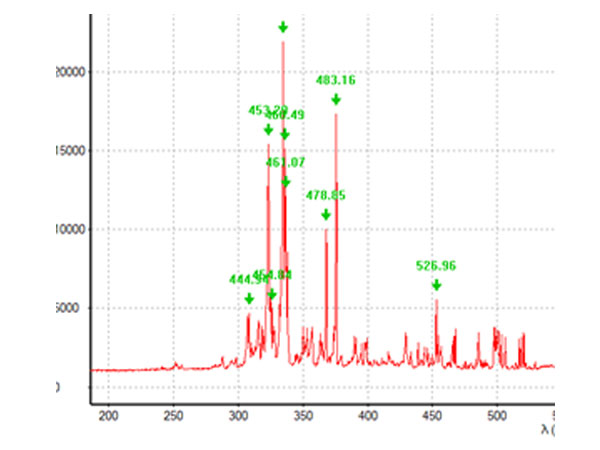

Model: Mars HS2000+
Wavelength Range: 180-900nm,
Slit=10μm,
Optical Resolution ~ 0.8nm

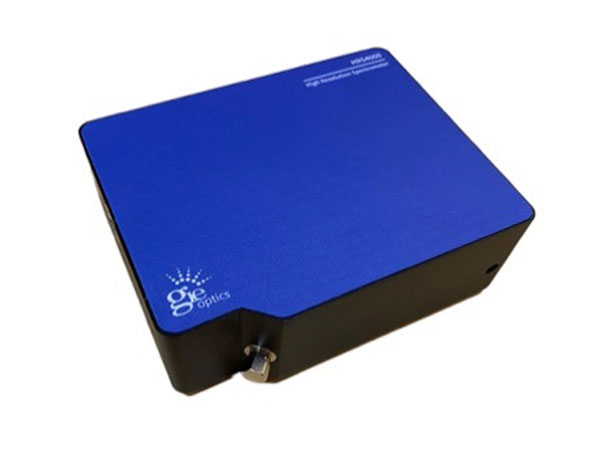

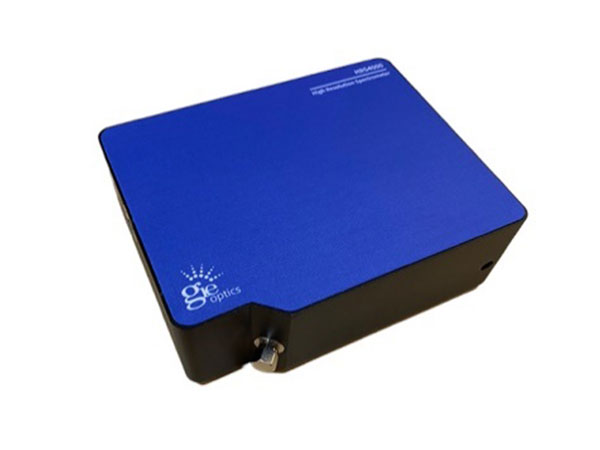

Model : HRS4000
Wavelength Range :180-1000nm (customized)
Slit=5μm,
Optical Resolution ~ 0.1nm

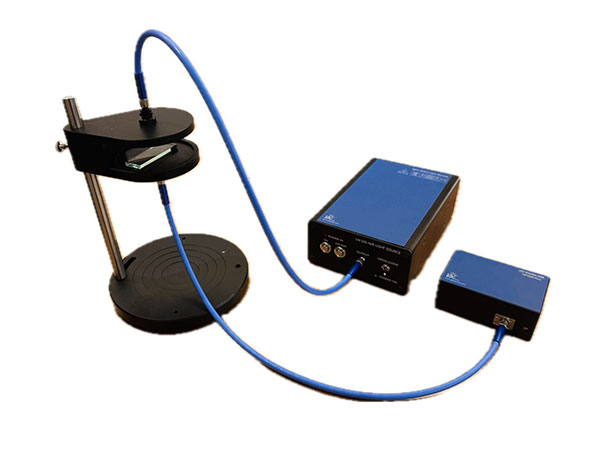

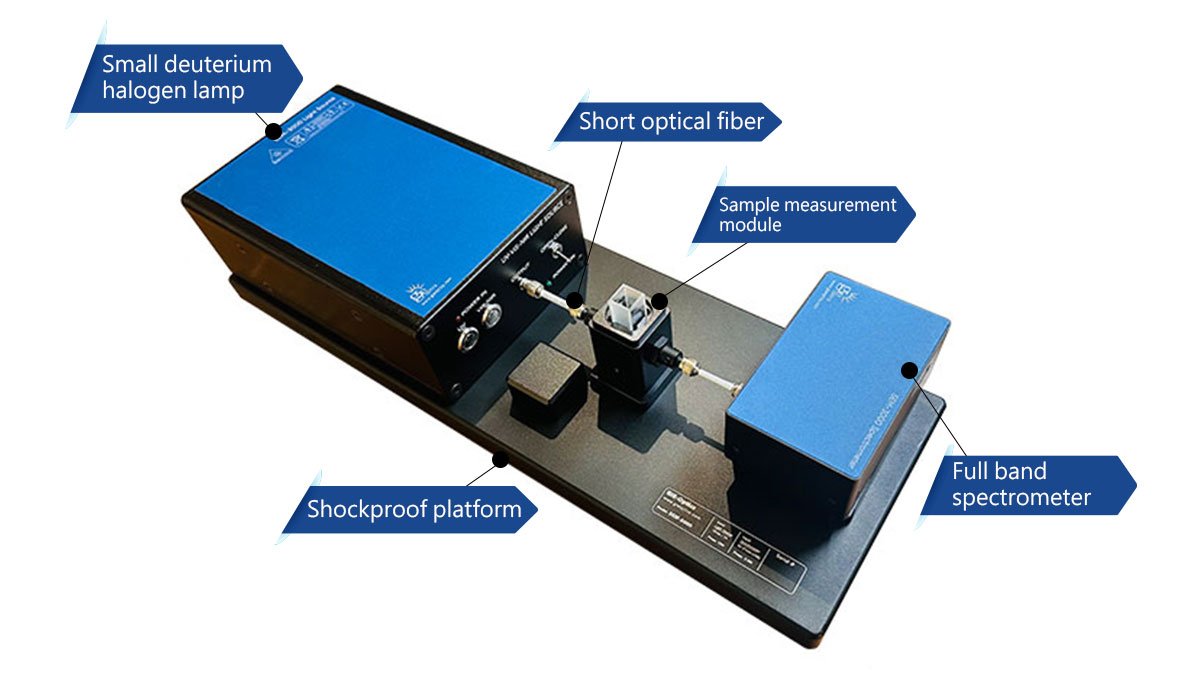

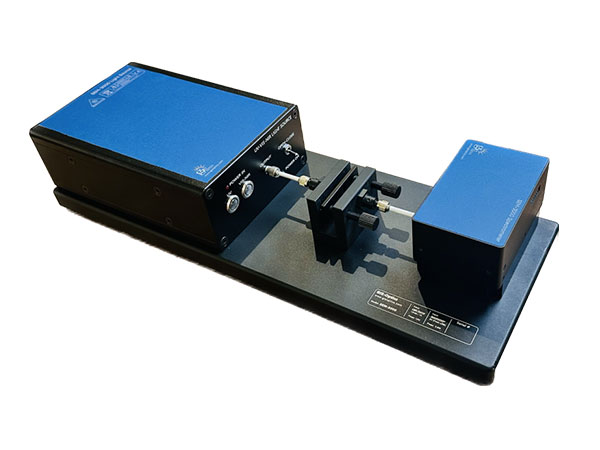

Directly use the SEM-3000 multi-function measurement system for measurement.

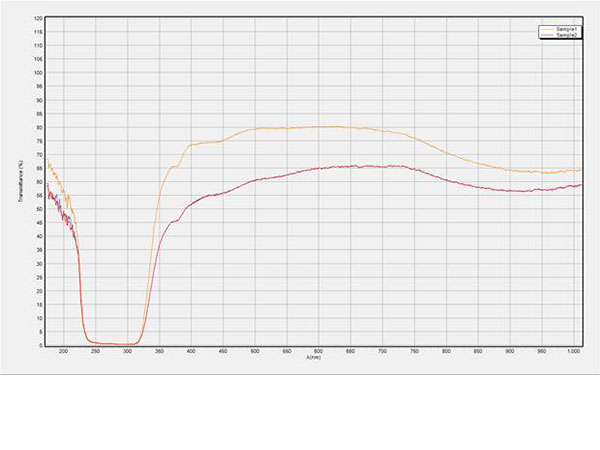

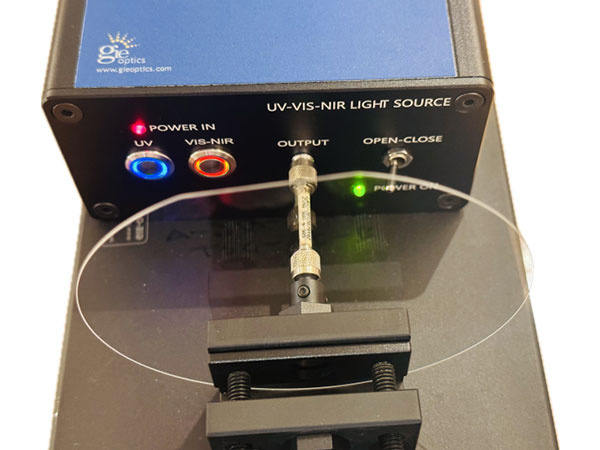

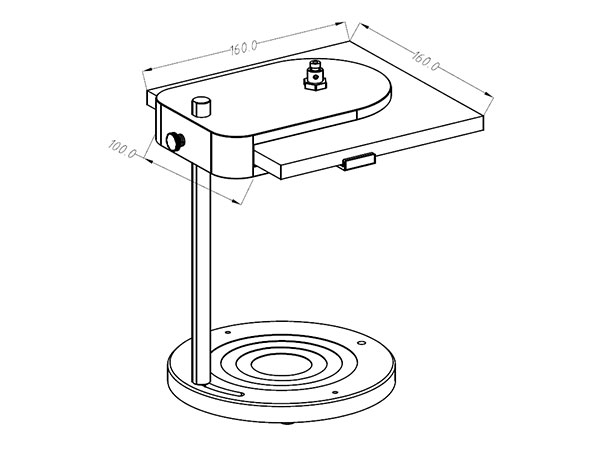

The experiment can be equipped with customized measurement fixtures to measure the transmittance of samples of different sizes.

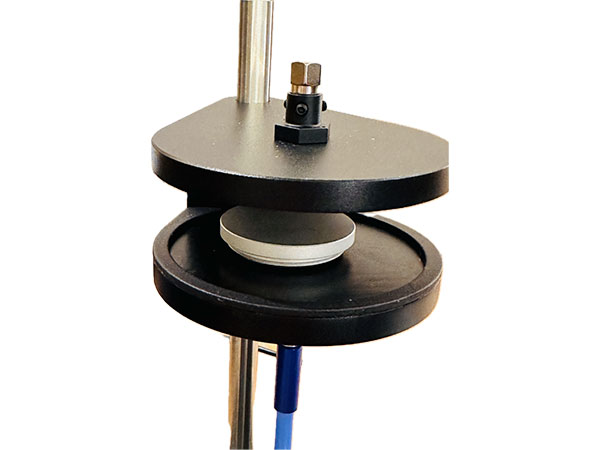

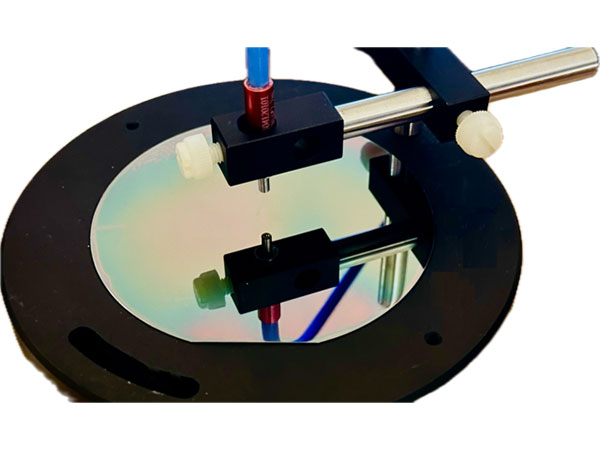

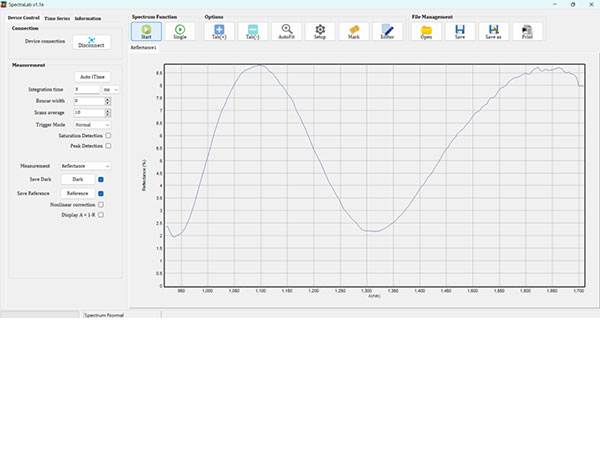

Different reflectance measurement fixtures can be used to measure the reflectance of transparent samples (glass coating) and non-transparent material samples (wafer).

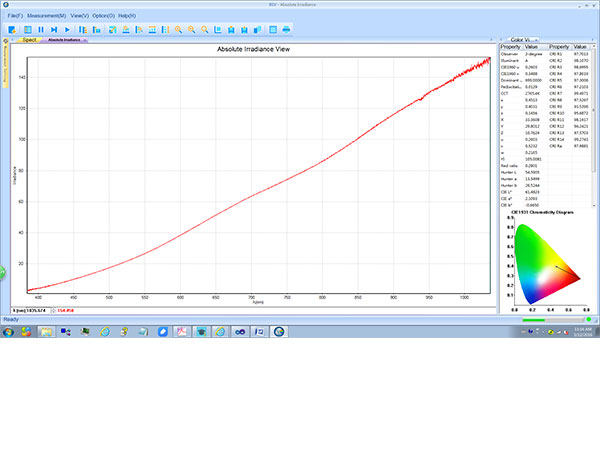

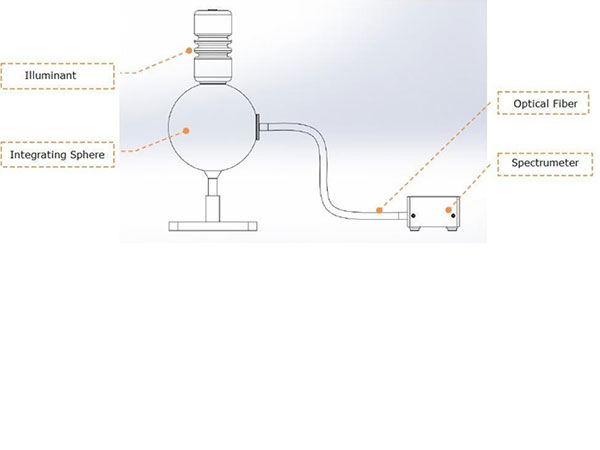

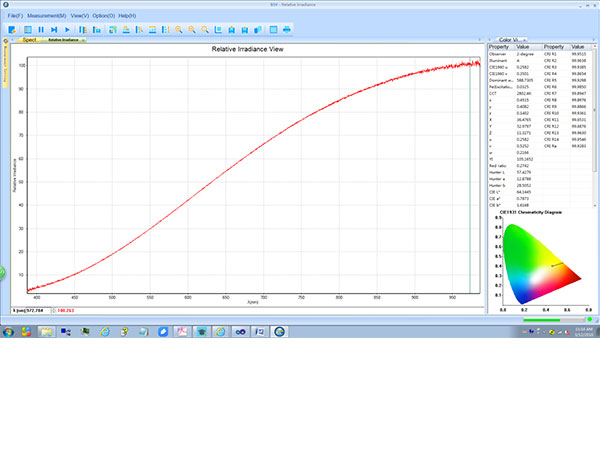

If you have a standard light source, you can calibrate the radiation intensity yourself.
