NIR Spectrometer

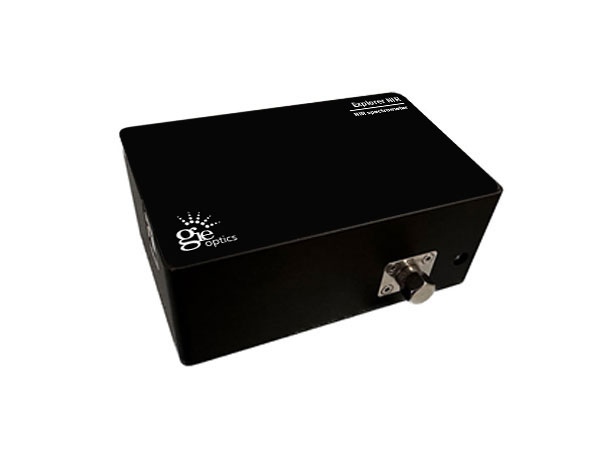

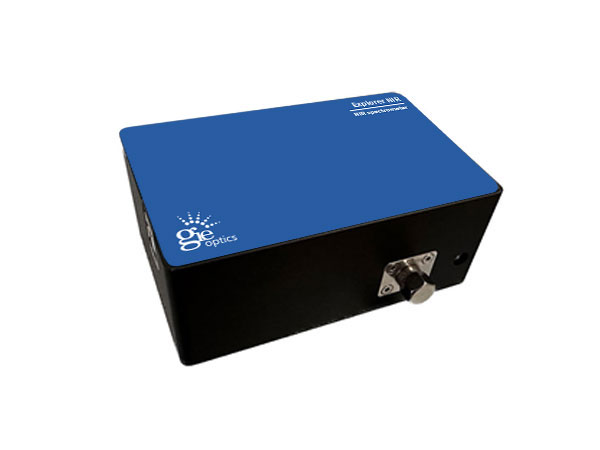

Explorer NIR, 512pixels InGaAs near-infrared spectrometer

Explorer NIR-512

Explorer NIR-512

The Explorer NIR-512 near-infrared spectrometer is designed to use Hamamatsu's uncooled 512 pixels InGaAs sensor and an optimized optical-mechanical platform, resulting in a maximum optical resolution better than 1nm, making it very suitable for the detection of near-infrared LD light sources. The optical platform of this series of spectrometers adopts a replaceable slit design. One spectrometer can be configured with a variety of slits of different widths to meet the spectrum measurement needs of different resolutions and sensitivities. Small in size, it is very suitable for fields such as near-infrared LD detection, food testing, biopharmaceutical and scientific research, and industrial integration.

Product advantages:
  • Using Hamamatsu 512pixels uncooled InGaAs sensor, the highest resolution reaches ~1.0nm.
  • Compact optical path and structural design, suitable for system integration.
  • It has an interchangeable slit design that can be matched with slits of different specifications. Users can choose different resolutions and sensitivities to meet the needs of experiments.
  • The wavelength range and resolution can be customized to configure the appropriate spectral range and resolution.
  • Professional measurement software, providing measurement functions such as absorbance/transmittance/concentration/reflectivity/timing monitoring.
  • Measurement of near-infrared LED light source spectrum
  • Food and agricultural testing, such as sweetness and freshness testing of vegetables and fruits; fat and protein testing of meat; moisture testing of grains and seeds, etc.
  • Oil composition analysis
  • Biopharmaceutical online monitoring and process analysis
  • Plastic sorting

Basic Default Specification

Model Wavelength Range Resolution Slit Grating
Explorer NIR-512pixels 920-1700nm ~3.0nm 25um 1000g/mm, 1310nm, 16bit AD
Explorer NIR-512pixels 1500-1680nm ~0.8nm 25um 300g/mm, 1200nm, 16bit AD

*Other wavelength ranges and resolutions can be customized.
*Some models can be equipped with cylindrical lenses to improve the sensitivity of the spectrometer.


Model Explorer NIR-512
Detector InGaAs CCD 512 pixels
Pixel size :25µm×250µm
Wavelength response range:900nm-1700nm
Dimension 94mm×60mm×36.5mm
Wavelength Range 920nm-1700nm (pre-configured)
Optical Resolution ~3nm (pre-configured 25µm slit)
A/D 16bit
Signal-to-Noise Ratio 16666:1
Integration Time 0.1ms-65s
Dynamic Range 16666:1
Trigger Mode 4 types (normal trigger, software trigger,
hardware trigger, synchronous trigger)
Power Consumption 5VDC,300mA
Fiber Connector SMA905, replaceable slit design
Operating Temperature 5℃-35℃ (recommended temperature 25℃)
Communication Interface Mini USB2.0(12Mbps)
Operating System Win XP, Win 7, Win 8, Win10
Power Supply USB
Model Specification
Explorer NIR-512-1516 Wavelength range:1500nm-1680nm,Optical Resolution:~0.8nm,slit:25um, grating:1000 lines/mm,1310nm,16 A/D
Explorer NIR-512-9217 Wavelength range:920nm-1700nm,Optical Resolution:~3nm,slit:25um,grating:300lines/mm,1200nm,16 A/D

Test Data

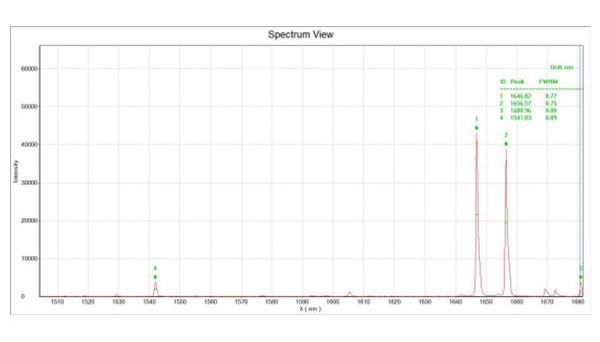

Standard mercury argon lamp spectrum

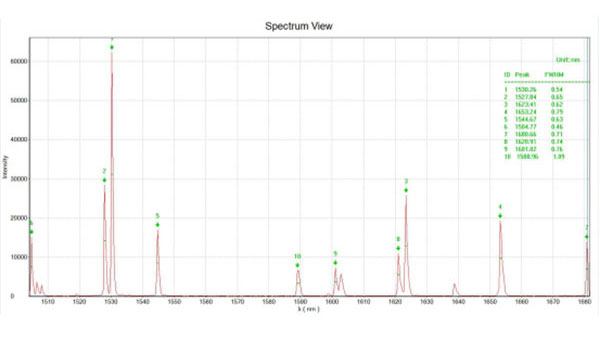

Standard xenon lamp spectrum

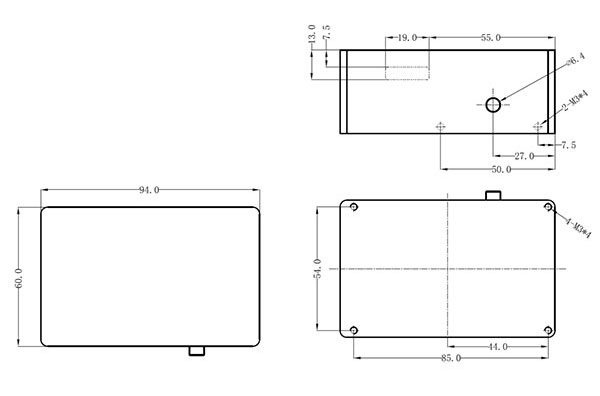

Spectrometer Dimensional Drawing
