UV-VIS TE-Cooling Spectrometer

SR2000/1000-TEC UV-VIS TE-Cooling Spectrometer

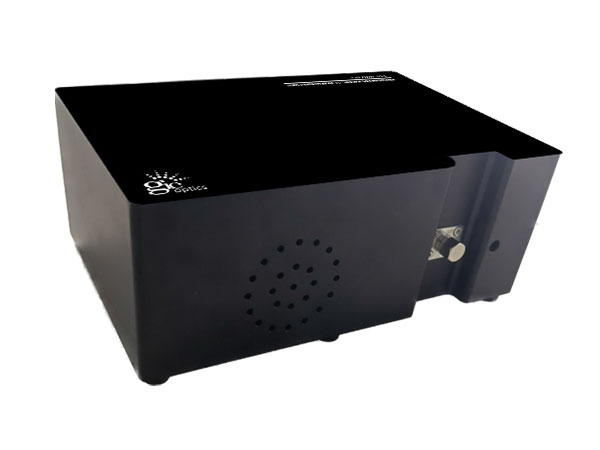

Model 1: SR2000-TEC
SCM2000 series high-performance TE cooling spectrometer uses Hamamatsu 2048x122 pixels back-illuminated cooling area array sensor and 18bit A/D, and optimizes the internal circuit system to achieve a signal-to-noise ratio of 1000:1 and a dynamic range of 100000 :1. The optimized optical path design and replaceable slit design make this spectrometer very suitable for fluorescence detection, Raman spectrum measurement and other weak spectral signal measurements.

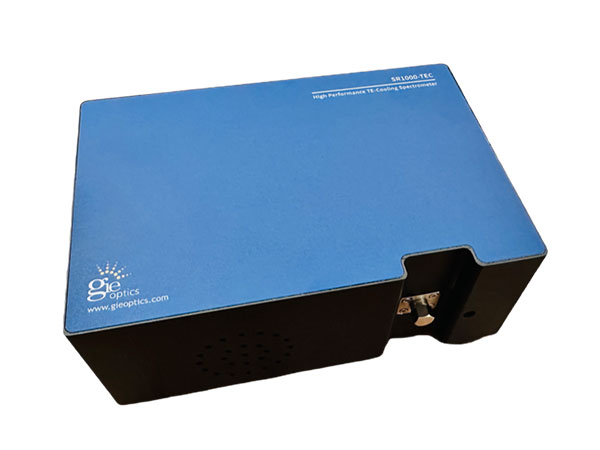

Model: 2 SR1000-TEC
The SCM1000 series of high-performance TE cooling spectrometers use Hamamatsu 1024x58 pixels back-illuminated cooling area array sensor and 18bit A/D, and optimize the internal circuit system to achieve a signal-to-noise ratio of 1000:1 and a dynamic range of 100000 :1. The optimized optical path design and replaceable slit design make this spectrometer very suitable for fluorescence detection, Raman spectrum measurement and other weak spectral signal measurements.

Product advantages：

• Using Hamamatsu's 2024×122 / 1024x58 pixels back-illuminated cooling area array CCD, the pixel size reaches 12µm×12µm / 24µm×24µm, and the highest optical resolution can reach ~0.1nm.
• Replaceable slit design takes into account both resolution and sensitivity.
• The structure is compact and lightweight, suitable for system integration.
• The software has timing measurement and real-time display of peak wavelength and half-maximum width.
• Provide secondary development kit (SDK).

Specification

Model	SR1000-TEC	SR2000-TEC
Detector	Hamamatsu back-illuminated thin-film refrigerated area CCD (S7031-1006s) 1024×58 Pixels Pixel Size 24µm×24µm Wavelength Response Range 200nm-1100nm	Hamamatsu back-illuminated thin-film refrigerated area CCD (S10141-1107S-01) 2048×122 pixels Pixel size 12µm×12µm Wavelength response range 200nm-1100nm
Size	190mm×120mm×66mm	190mm×120mm×66mm
Wavelength Range	200nm-950nm (Pre-configured)	200nm-950nm (Pre-configured)
Optical Resolution	~1nm (Pre-configured 25µm slit)	~1nm (Pre-configured 25µm slit)
Signal to noise ratio	1000:01:00	1000:01:00
A/D	18bit	18bit
Integration Time	8ms-3600s	8ms-3600s
Dynamic Range	100000:1	100000:1
Trigger Mode	Software, hardware, synchronous	Software, hardware, synchronous
Fiber Connector	SMA905	SMA905
Operating Temperature	5℃-35℃ (Recommended temperature 25℃)	5℃-35℃ (Recommended temperature 25℃)
Communication Interface	USB2.0, RS232	USB2.0, RS232
Operating System	Win XP, Win 7, Win 8, Win10	Win XP, Win 7, Win 8, Win10
Power Supply	2A, 5VDC	2A, 5VDC

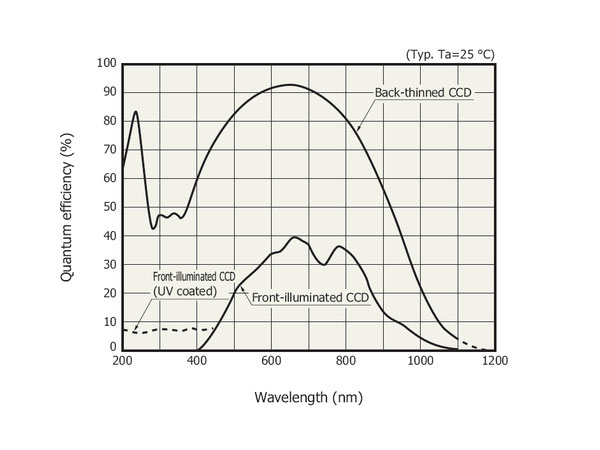

Sensor Efficiency Spectrum
