High Sensitivity Spectrometer

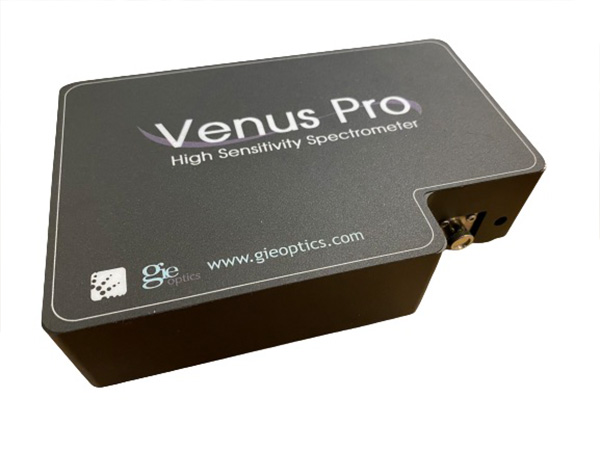

VenusPro-NIR, NIR High Sensitivity Spectrometer

NIR high-sensitivity spectrometer, with a selectable wavelength range of 300-1100nm, the best optical resolution can reach 0.35nm, Hamamatsu S11510 area array back-illuminated CCD, signal-to-noise ratio 800:1, A/D16bit

Venus Pro-NIR spectrometer is equipped with Hamamatsu S10420 2048×64 pixels back thinned CCD. The signal-to-noise ratio is increased to 800:1, the dynamic range is increased to 50000:1, and the sensitivity in the 200-500nm range is enhanced. Therefore, this series of spectrometers is very suitable for water quality detection, gas monitoring, fluorescence spectrum measurement, and other low light measurements. The spectrometer can obtain different spectral ranges and optical resolutions by configuring gratings with different number of lines and different slits, providing a wealth of choices for scientific research and industrial testing customers. The right size is also ideal for system integration.

Product advantages：

• Area array back-illuminated CCD improves signal-to-noise ratio and dynamic range
• Small size and easy system integration
• Linear gradient filters or long-pass filters eliminate second-order and higher-order diffraction.
• Replaceable slit design can take into account both sensitivity and resolution measurement needs
• USB2.0, RS232/485 and other communication methods
• USB 2.0 for data transfer and power supply
• Supports USB2.0, RS232/485 multiple communication methods.
• Provide SDK development kit to assist customers in secondary development.
• Timing measurement, real-time display of peak wavelength and full width at half maximum (FWHM).

Application areas：

• Raman spectroscopy measurements
• Fluorescence spectrum measurement
• Near infrared weak spectrum measurement

Specification

Model	Venus Pro-NIR
Dimension	165mm x 110mm x 38mm
Weight	0.7 Kg
Detector wavelength range	200nm - 1100nm
Wavelength range width	700nm，350nm，233nm( Optional )
Optical Resolution	0.35nm - 1.5nm ( Confirmed at order )
Fiber connector	SMA905
Detector	Hamamatsu S16010 series area array back-illuminated CCD
Detector Pixel	2048 x 64 Pixels. Pixel size is 14μm x14μm
Signal to noise ratio	800:01:00
Linearity	>99%
Stray light	≤0.1% (400nm)
A/D resolution	16 bit
Integration time	1ms - 10s
Dynamic range	50000：1（Typical）
Trigger mode	Software, hardware, synchronous
Power consumption	5VDC ,500mA
Operating temperature	5℃ -35℃（25℃ recommand）
Communication Interface	USB2.0，RS232
Operating system	Win XP, Win7,Win8, Win10
Power supply	USB

Model	Wavelength Range	Resolution	Slit	Grating	Filter	Lens
VenusPro-NIR	750-1100nm	~1.0nm	50um	1200g/mm, 850nm	F08	L01
		~0.35nm	10um	1200g/mm, 850nm	F06	L02
	350-1050nm	~1.0nm	25um	600g/mm, 650nm	F05	L01
	640-850nm	~0.7nm	50um	1800g/mm, 500nm	F06	L02
	535-760nm	~0.6nm	50um	1800g/mm, 500nm	F05	L01

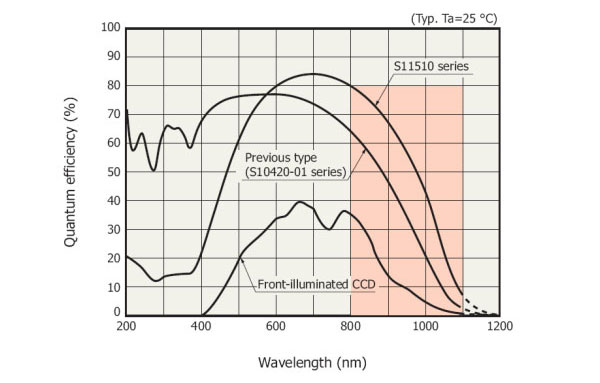

Sensor response spectrum

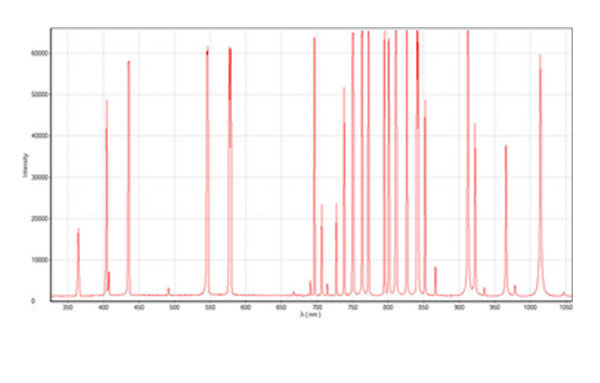

Test spectrum of Standard mercury argon lamp

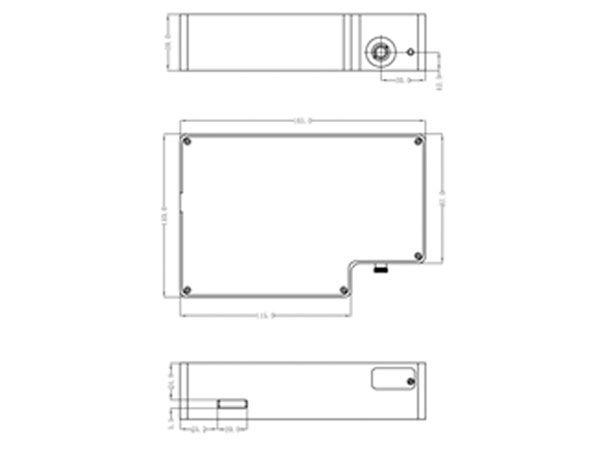

Spectrometer Dimensional Drawing
