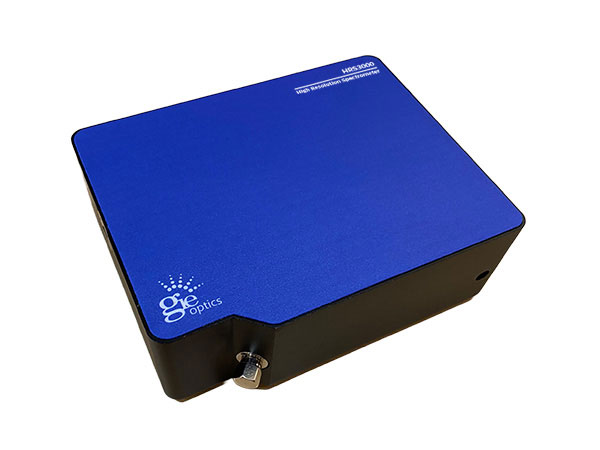

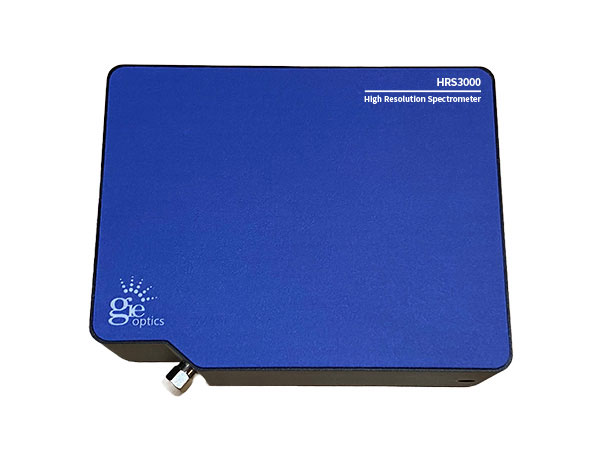

HRS3000 High Resolution Spectrometer

The HRS3000 series is a cost-effective spectrometer with excellent optical path design. It uses Toshiba TCD1304 3648 pixels sensor to achieve the best optical resolution of 0.35nm. The internal circuit of the spectrometer has been completely upgraded, and the signal-to-noise ratio reaches 300:1. This spectrometer has great value in general spectrum measurement.

With its lightweight size, the spectrometer is ideal for system integration.

Product advantages：

• Crossed asymmetric C-T optical system.
• Linear gradient filters or long-pass filters eliminate second-order and higher-order diffraction.
• SMA905 fiber optic connector
• Spectral range and resolution can be customized.
• USB 2.0 data transfer and power supply.
• Supports USB2.0, RS232/485 multiple communication methods.
• Provide SDK development kit to assist customers in secondary development.
• Timing measurement, real-time display of peak wavelength and full width at half maximum (FWHM).

Application areas：

• LED Colorimetry Measurements
• Solar Spectrum Measurement
• Fluorescence measurement
• Laser Spectroscopy Measurement
• Plasma Spectroscopy Measurement

Specification

Model	HRS3000
Dimension	140mm x 110mm x 46mm
Weight	0.7 Kg
Wavelength range	315nm - 1100nm
Optical resolution	~0.06nm-0.3nm
Fiber connector	SMA905
Detector	TOSHIBA TCD1304 Linear CCD
Pixel	3648 pixels, size 14μm×200μm
Signal to noise ratio	300:1 at full signal
Linearity	>99%
Stray light	<0.1% (600nm,435nm)
A/D resolution	16 bit
Integration time	4ms - 10s
Dynamic range	300:01:00
Trigger mode	Software, hardware, synchronization
Power consumption	250 mA, 5 VDC
Operating temperature	5℃ -35℃（25℃）
Computer interface	USB2.0（12Mbps） RS232（115200bps）
Operating system	Win XP, Win7,Win8, Win10
Power supply mode	USB or 5VDC

Model	Wavelength Range	Resolution	Slit	Grating	Filter	Lens
HRS3000	400-1100nm	~1nm	25um	600g/mm,650nm	F05	---
	350-700nm	~0.5nm	25um	1200g/mm,400nm	---	---
	350-583nm	~0.35nm	25um	1800g/mm,400nm	---	---
	750-1100nm	~0.5nm	25um	1200g/mm,850nm	F08	---
		~1nm	50um	1200g/mm,850nm	F08	---
	350-1050nm	~1nm	25um	600g/mm,650nm	F05	---
		~1nm	25um	600g/mm,650nm	F05	L01
	315-1015nm	~1nm	25um	600g/mm,650nm	F06	---
		~1nm	25um	600g/mm,650nm	F06	L01
	380-730nm	~0.4nm	10um	1200g/mm,400nm	---	---
	600-950nm	~0.4nm	10um	1200g/mm,850nm	F08	L01

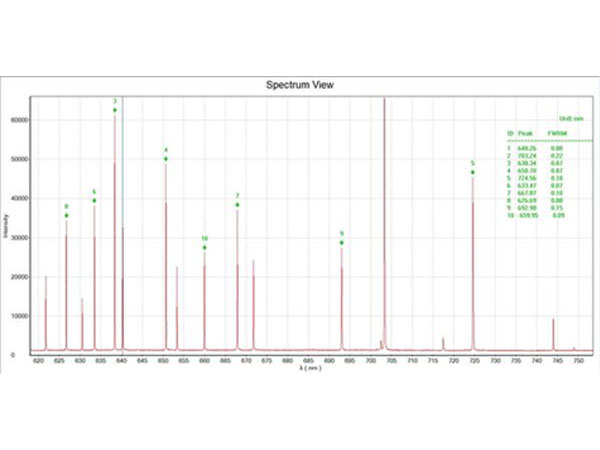

Test spectrum of Standard mercury argon lamp

Spectrometer Dimensional Drawing
